Killark Killark TB27


Description

Industry Description

DURALOY 7 SERIES - IRON CONDUIT BODY - TB TYPE - HUB SIZE 3/4 INCH -VOLUME 9.5 CUBIC INCHES

AD Description

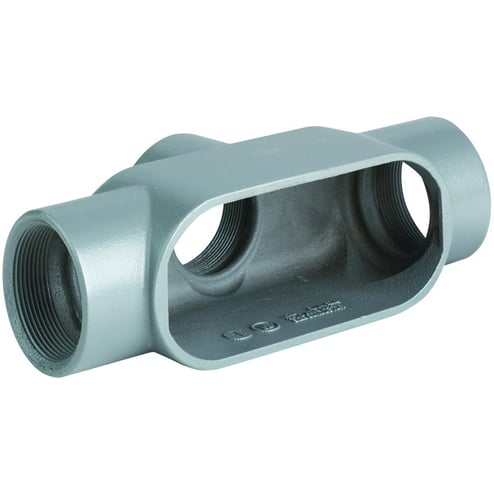

Killark® Duraloy® 7 TB27 Type TB Conduit Body, 3/4 in Hub, Form 7, 9.5 cu-in, Iron, Tri-Coated

Vendor Description

Form 7 conduit bodies offer a great approach in size for neat compact installation. This series is available in our Duraloy® iron and copper-free aluminum, with superior corrosive protected electro-statically applied paint.

Specifications

Application
To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Color
Gray
Country of Origin
MX
Finish
Powder Coat
Length1
7.0000
Material
Malleable
Series
Duraloy 7
Special Features

  • Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal
  • Flat back design for greater wiring capacity and mounting stability
  • For use with threaded rigid conduit steel or aluminum
  • High quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets
  • Innovative spring clip design for installation ease and repeat usage
  • Smooth integral wire bushings protects cable
  • Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, division 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10
  • Suitable for wet locations when used with gaskets
  • Superior corrosion protection tri-coat finish of electro zinc, chromate sealant and electrostatically applied powder coating
  • To provide access to conductors for pulling, splicing and maintenance
  • Tri-coat finish of electro zinc, chromate sealant and electrostatically applied powder coating
Standard
UL, CSA
Sub_Brand
DURALOY 7
Type
Iron conduit body
