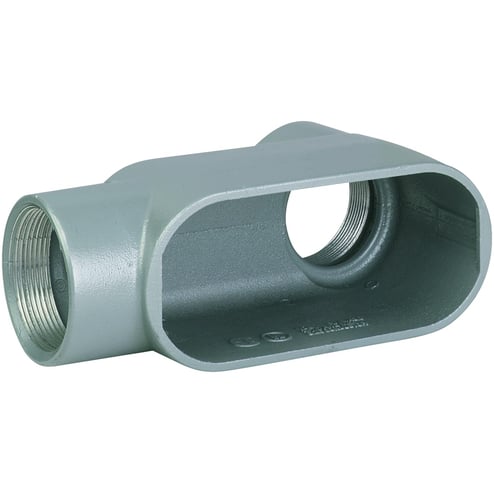

Killark Killark LB27


Description

Industry Description

DURALOY 7 SERIES - IRON CONDUIT BODY - LB TYPE - HUB SIZE 3/4 INCH -VOLUME 7.0 CUBIC INCHES

AD Description

Killark® Duraloy® 7 LB27 Type LB Conduit Body, 3/4 in Hub, Form 7, 7 cu-in, Iron, Tri-Coated

Vendor Description

Form 7 conduit bodies offer a great approach in size for neat compact installation. This series is available in our Duraloy® iron and copper-free aluminum, with superior corrosive protected electro-statically applied paint.

Specifications

Application
To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Color
Gray
Country of Origin
IN
Dimensions
5-3/8 in L x 1-3/4 in W x 2-1/2 in H
Finish
Tri-Coated
Length1
6.0000
Material
Iron
Series
Duraloy 7
Special Features

  • Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal
  • Flat back design for greater wiring capacity and mounting stability
  • For use with threaded rigid conduit steel or aluminum
  • High quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets
  • Innovative spring clip design for installation ease and repeat usage
  • Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, division 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10
  • Suitable for wet locations when used with gaskets
  • Superior corrosion protection tri-coat finish of electro zinc, chromate sealant and electrostatically applied powder coating
  • Tri-coat finish of electro zinc, chromate sealant and electrostatically applied powder coating
Standard
UL, CSA
Sub_Brand
DURALOY 7
Type
Type LB
