Killark Killark T37


Description

Industry Description

DURALOY 7 SERIES - IRON CONDUIT BODY - T TYPE - HUB SIZE 1 INCH - VOLUME11.5 CUBIC INCHES

AD Description

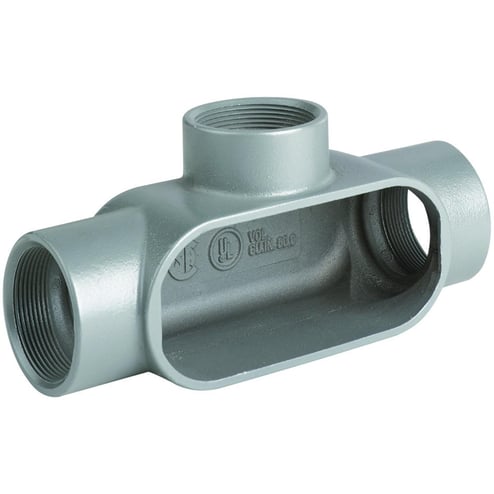

Killark® Duraloy® 7 T37 Type T Conduit Body, 1 in Hub, Form 7, 11.5 cu-in, Iron, Tri-Coated

Vendor Description

Killark® has become a global provider of harsh and hazardous location products. The Killark® range encompasses industrial and explosion proof fittings engineered to withstand the toughest extremes in climate from the dry and arid Middle East, tropical Asia to frozen Northern Canada.

Specifications

Application
To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Color
Gray
Country of Origin
MX
Finish
Powder Coat
Length1
8.0000
Material
Malleable
Series
Duraloy 7
Special Features

  • Flat back design for greater wiring capacity and mounting stability
  • Innovative spring clip design for installation ease and repeat usage
  • Intermateability UL Listed and CSA Certified interchangeability with competitive products
  • Smooth integral wire bushings protects cable from damage when wires are pulled through opening
  • Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, division 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10
  • Suitable for wet locations when used with gasketed covers
  • Suitable for wet locations when used with gaskets
  • Ten standard hub configurations
  • Tri-coat finish of electro zinc, chromate sealant and electrostatically applied powder coating
Standard
UL, CSA
Sub_Brand
DURALOY 7
Type
Iron conduit body
