Hubbell Hubbell DS120
Hubbell DS120
Kirby Risk #: 2297363
UPC: 78358515130, 783585151304, 00783585151304
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

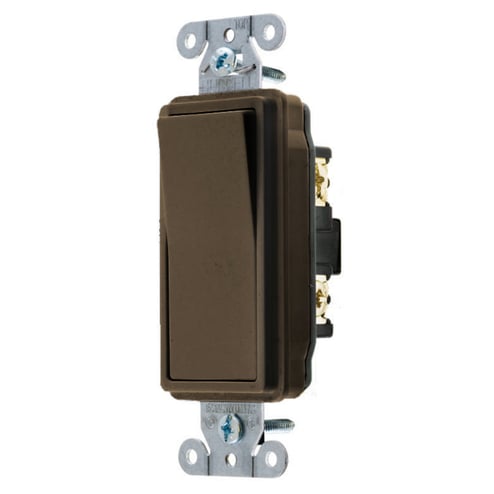

Hubbell Wiring Device Kellems, Switches and Lighting Control, DecoratorSwitch, Specification Grade, Single Pole, 20A 120/277V AC, Back and SideWired, Brown
Modified Industry Description
SWITCH, DECO SER, SP, 20A 120/277V,
AD Description
Wiring Device-Kellems Style Line® DS120 Decorator Self-Grounding AC Switch, 120/277 VAC, 20 A, 5540 W Power Rating, 2-Position Contact
Vendor Description
From a toggle switch to an AC rocker style switch, Select Spec™ switches are ideal for any commercial to light industrial construction project where ease of wiring, durability and reliability are required. The nylon toggle is exceptionally rugged and chemically resistant. Select Spec™ switches are available in a variety of colors to blend into the decor of office buildings, administrative areas, schools, government projects, retail spaces and any place a light industrial/commercial switch is needed.
Specifications
| Action |
Positive Snap
|
|---|---|
| Actuator |
Rocker
|
| Amperage Rating |
20
|
| Application |
Commercial Heavy Duty
|
| Color |
Brown
|
| Connection |
Threaded
|
| Country of Origin |
CN
|
| Dimensions |
4.276 in H x 1.435 in W x 1.539 in D
|
| Enclosure |
None
|
| Environmental_Conditions |
-40 to 75 deg C Temperature
|
| Length1 |
4.1600
|
| Material |
Composite
|
| Mounting |
Threaded
|
| Number_Of_Poles |
1
|
| Operating_Temperature |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
|
| Power_Rating |
5540
|
| Series |
Decorator
|
| Size |
Standard Sized
|
| Special Features |
Standard Product
|
| Standard |
NEMA WD1, UL20
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Self-Grounding
|
| Voltage Rating |
120/277
|
| Wattage |
5,540
|
