Burndy Burndy YA31LTC38FX


Description

Industry Description

Cu Comp Terminal Flex Cond, Bvl Entry, 1 Hole/W/InspWindow, 250 Flex(637/24)CLASS I,K,M, 600 V-35 kV, 3/8" Stud, Std bbl, White, 17 or 298 Index.

AD Description

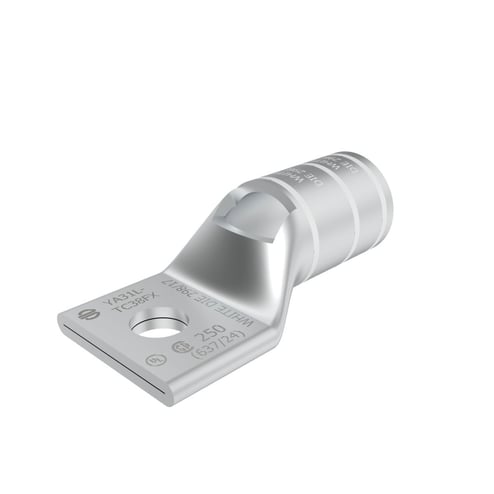

BURNDY® HYLUG YA31LTC38FX YA-L-FX 1-Hole Compression Lug With Inspection Window, 250 kcmil, Die Code: 17, 3/8 in Stud, Copper

Vendor Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.

Specifications

Application
For Flex Conductor
Country of Origin
US
Length1
2.5000
Material
Copper
Special Features

  • Conductor size of 250 flex kcmil, 637/24 Class I, K, M
  • Electro tin plated
  • Flex conductor
  • For mechanical: MD6, OUR840, MD7-34R tool, (2) W30VT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W30VT, W30RT die, Y35, Y39, Y750, PAT750 tool, (2) U30RT die, Y46 tool, (2) U30RT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V installation tool
  • Used for W30VT, W30RT W-dies and U30RT U-die
Standard
UL 486A-486B
Sub_Brand
HYLUG
Type
Standard Barrel, Tin Plated
Voltage Rating
35,000
