Thomas & Betts Thomas & Betts PAC345
Thomas & Betts PAC345
Kirby Risk #: 2276449
UPC: 78378633014, 783786330140, 60783786330142
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description
Aluminum Type PAC - Aluminum Parallel Groove Clamp with Cast Copper Liner for Wire Range Main: 1/0-8 ASCR 1/0 Str.-8 Sol. AL/CU, Tap: ASCR 1/0 Str.-8 Sol. ALCU
Modified Industry Description
PARGRV CLAMP
AD Description

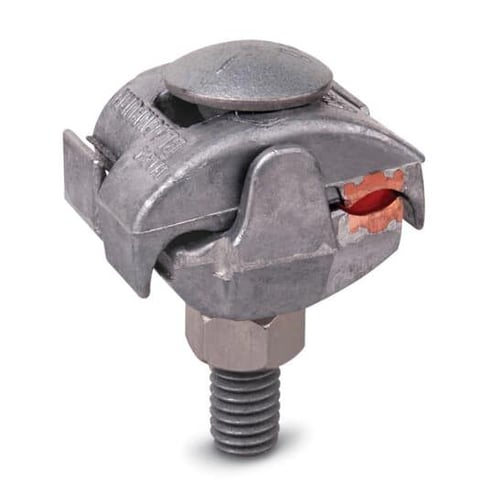

Blackburn® PAC345 2-Conductor Type PAC Parallel Groove Clamp With Cast Copper Liner, ACSR/Aluminum/Copper/Solid/Stranded Conductor, 8 to 1/0 AWG Main/Run, 8 to 1/0 AWG Tap, 3/8 in Bolt, Aluminum
Vendor Description
Blackburn® cast, forged, or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of U.L. and C.S.A. certified solutions for your electrical interface needs.
Specifications
| Application |
Securing Conductors
|
|---|---|
| Bolt_Size |
3/8
|
| Brand Name |
Thomas & Betts
|
| Conductor Range |
Main: 1/0-8 ASCR 1/0 Str.-8 Sol. AL/CU, Tap: ASCR 1/0 Str.-8 Sol. ALCU
|
| Conductor Type |
ACSR/Aluminum/Copper/Solid/Stranded
|
| Connection |
Bolted
|
| Country of Origin |
IN
|
| Finish |
Bare
|
| Insulation |
None
|
| Material |
Aluminum
|
| Mounting |
None
|
| Package_Quantity |
50
|
| Size |
Height 2-7/32 X Length 1-18/32 X Width 1-1/4 inch
|
| Special Features |
|
| Sub_Brand |
Blackburn
|
| Tap_Size |
8 to 1/0
|
| Type |
2-Conductor Type PAC
|
| Voltage Rating |
35
|
