Thomas & Betts Thomas & Betts LT438M


Description

Industry Description

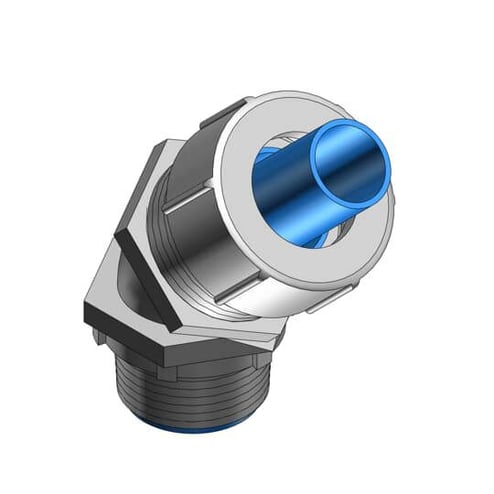

3/8 Inch 45 Degree Steel Liquidtight Bullet With Nylon Insert

Modified Industry Description

45 DEG METALLIC CONNECTOR

AD Description

T&B® Bullet® LT438M Conduit Connector With Nylon Insert, 3/8 in Trade, 45 deg, Steel, Electro-Plated Zinc

Specifications

Application
T&B Bullet meets performance requirements when terminating Type B liquidtight non-metallic conduit or flexible non-metallic tubing to a box or enclosure with knockout opening or threaded hub.
Brand Name
Thomas & Betts
Country of Origin
US
Insulation
Insulated
Material
Malleable
Special Features

  • Captive sealing O-ring with predetermined compression for a reliable seal at enclosure
  • Ferrule profile designed to reduce friction between conduit I.D. and ferrule allowing conduit to seat properly for an effective seal
  • Fitting assembles to conduit without disassembly and is designed to be installed with positive installation criteria (gland bottoms on body shoulder)
  • Fitting ferrule designed to accept variations in conduit inside diameter and is tolerant of field conduit cuts
  • Meets industry standards for cold impact and simulated hammer blow
  • Performance of fitting unaffected by exposure to detergents, cleaners, and sanitizers commonly encountered in food processing plants and typical industrial environment, also unaffected by cutting fluids, wiring pulling compounds and Marine environment
  • Performance of fittings tested to simulate adverse installation conditions
  • Rugged low profile non-metallic body and gland construction, the fitting is equipped with a steel locknut to firmly secure fitting to box or an enclosure and a sealing "O" ring
Standard
E 23018
Sub_Brand
Thomas & Betts
Trade_Size
3/8
Type
45
Width_2
5.3000
Width_3
5.2000
