TPI TPI OCH57208VSS

Name: TPI OCH57208VSS
Brand: TPI
SKU: 2268240
Price: 670.35 USD
Availability: InStock

TPI OCH57208VSS

Kirby Risk #: 2268240

UPC: 68633448057, 686334480574, 00686334480574

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: TPI

Description

Industry Description

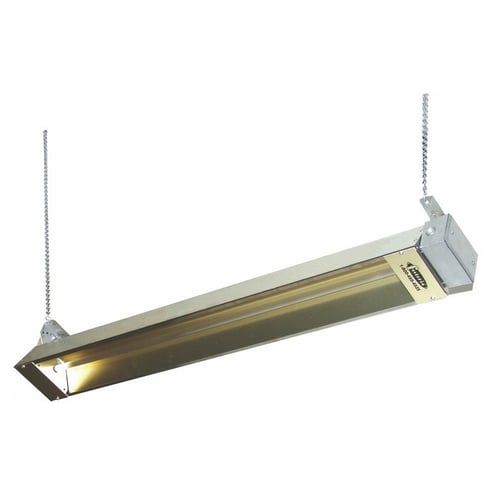

Quartz Electric Infrared Heater, Fostoria, 3000 WTT, 208 V, 14.4 AMP, 1 PH, Stainless Steel Housing, Chain Mounting, BTU Rating- 10239, OCH Series

Modified Industry Description

3000W 208V Outdoor/Indoor Quartz

Amperage Rating	14.4
Application	Indoor/Outdoor-Industrial/Commercial/Some Residential
Beam_Pattern	60 deg Symmetrical
Brand Name	TPI
Color	Brown
Country of Origin	US
Finish	Enamel Coated
Housing_Material	Stainless Steel
Model	OCH-57-208V-SS
Mounting	Chain
Phase	1
Power_Rating	3000
Series	OCH
Special Features	60 deg symmetrical heat pattern 671-5060 qt tube replacement element Corrosion resistant stainless steel 24 ga housing Frosted quartz tube heating element (included) Gold anodized aluminum reflectors and end caps Hard wire connection In-built surface mounting bracket allows for fixture adjustment up to a 45 deg horizontal tilt Listed for suspended, totally exposed (outdoor) and indoor spot heating applications Painted models are direct wire, unless specified and are supplied with 6 in lead wires for field connection in the internal wiring compartment Stainless steel models include an electrical enclosure assembled to the end of the heater housing and (2) 6 in long lead wires for direct field connection The 208 VAC model must have a field supplied plug The OCH series can be surfaced mounted using the supplied mounting brackets which allow up to a 45 deg horizontal tilt adjustment
Standard	cETLus Listed
Sub_Brand	TPI
Type	1-Phase Quartz
Voltage Rating	208
Wattage	3
