Burndy Burndy YHR-800


Description

Industry Description

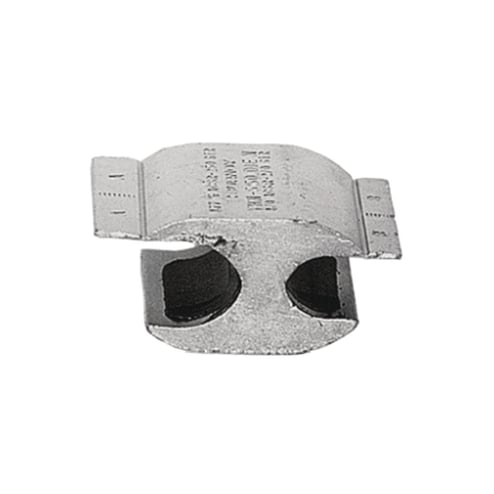

Compression Line Tap for Copper, AL or ACSR and Compact Conductors,wire diameter range,groove A(Run):0.879-1.108.

Modified Industry Description

556-795R 1/0-336T AL H T

Specifications

Application
For Copper, Aluminum Or ACSR And Compact Conductors
Brand Name
Burndy
Conductor Type
ACSR/Aluminum/Copper/Stranded
Conductor Size
Run: 600 - 900 KCMIL Stranded; 556.5 (18/1) - 795 (26/7) KCMIL ACSR
Country of Origin
MX
Material
Aluminum
Package_Quantity
10.000
Size
35 IN Height X 1.74 IN Width X 3.5 IN Length
Special Features

  • 0.398 to 0.684 in Dia cable range (tap)
  • 0.879 to 1.108 in Dia cable range (run)
  • 3/0 AWG to 350 kcmil Solid, 2/0 AWG to 350 kcmil stranded, 1/0 AWG to 336.4 (18/1) kcmil ACSR, 2/0 to 397 (18/1) kcmil compressed ACSR tap size
  • 600 to 900 kcmil stranded, 556.5 (18/1) to 795 (26/7) kcmil ACSR run size
  • Conductor ranges and tooling clearly printed on connector and package
  • Conductor Type:stranded AWG, ACSR, Shape:H, tools, die set catalog Number, and (number of Crimps):Y45 tool, S-KR die, (3), Y46 tool, P-KR die, (3), die Index:KR element a
  • Conductors are separated by the shape of the connector, bendable tabs secure both run and tap conductors freeing the linemans hands to work with the installation tool,
  • Massive aluminum design minimizes corrosion due to galvanic corrosion
  • Prefilled with PENETROX® joint compound and individually packaged
  • Universal and reversible figure H shaped aluminum connector
Standard
RUS Accepted
Sub_Brand
HYCRIMP
Tap_Size
3/0 - 350 KCMIL Soild, 2/0 - 350 KCMIL Stranded; 1/0 - 336.4 (18/1) KCMIL ACSR, 2/0 - 397 (18/1) KCMIL Compressed ACSR
Type
Type YHR Compression Line
