Hoffman Hoffman UU6060SF
Hoffman UU6060SF
Kirby Risk #: 2259979
UPC: 78351061490, 783510614904, 00783510614904
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hoffman
Description
Industry Description
Swing Frame, fits 625x612mm, Steel
Modified Industry Description
SWING-OUT RACK FRAME 11U
AD Description

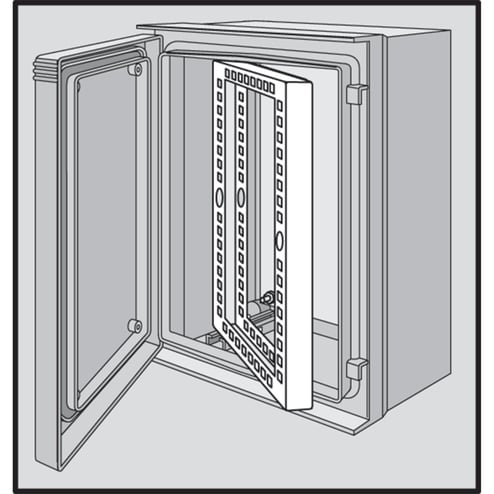

Hoffman ULTRX™ UU6060SF UX1Y Swing Out Rack Frame, 21.08 in W x 21-1/4 in H, For Use With 625 x 612 mm NEMA 4X DataCom Fiberglass Wi-Fi Cabinet, Steel
Vendor Description
Swing Frame provides 19-in. rack-mounting capabilities with U-Style (Type RA) mounting hole pattern. Quarter-turn latch has 100-degree swing. Adjustable mounting provision. 14 gauge plated steel. Includes mounting hardware. Swing frame maintains enclosure rating if properly installed in a HOFFMAN enclosure. Note: Front mounting position is approximately 140mm/5.5 in. back on 400mm enclosures.
Specifications
| Application |
Swing Frame provides 19-in. rack-mounting capabilities with U-Style (Type RA) mounting hole pattern. Quarter-turn latch has 100-degree swing. Adjustable mounting provision. 14 gauge plated steel. Includes mounting hardware. Swing frame maintains enclosure
|
|---|---|
| Color |
Steel/Zinc
|
| Country of Origin |
US
|
| Finish |
Zinc Plated
|
| Length1 |
34.0000
|
| Material |
Steel
|
| Series |
UX1Y
|
| Size |
fits 625X612mm
|
| Special Features |
|
| Sub_Brand |
Hoffman
|
| Type |
Swing Frame
|
