Hubbell Hubbell CU300A
Hubbell CU300A
Kirby Risk #: 2254694
UPC: 78358518100, 783585181004, 00783585181004
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Controls, OccupancySensors, H-Moss Control Unit, 120/277V AC 60HZ, For use with Ceiling andWall Mounted Sensors
Modified Industry Description
OCCUPANCY SENSOR H-MOSS CONTROL UNIT, 120/277V
AD Description

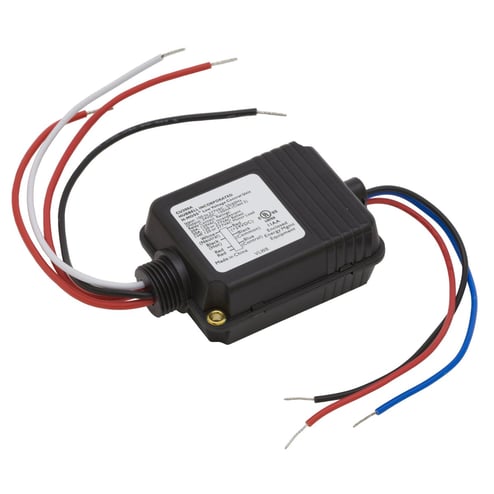

Wiring Device-Kellems H-MOSS® CU300A Universal Occupancy Sensor Control Unit, 120/277 VAC, 0 to 1800 W, 3.69 in L x 2.33 in W x 1.36 in H
Vendor Description
Hubbell® CU series control units are required for use with Hubbell® ATD, ATU, ATP and PIR series ceiling and wall-mount occupancy sensors. The control units provide a 24 VDC power supply for 1 to 4 sensors or sensor/Add-A-Relay combinations and contain an internal relay for the control of an external lighting load.
Specifications
| Application |
For Use with 24V DC Sensors
|
|---|---|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Control_Output |
24 VDC/150 mA
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Functions |
Wire Leads
|
| Humidity |
0 to 95% Non-Condensing Relative
|
| Load |
Incandescent- 0 to 1800 Watts120V Ballast- 0 to 2400 Watts277V Ballast- 0 to 5540 Watts
|
| Material |
Thermoplastic
|
| Mounting |
Screw Mount
|
| Mounting_Type |
Threaded
|
| Operating_Cycles |
6k
|
| Operating_Temperature |
32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
|
| Processor |
24 DC
|
| Size |
3.69 in L x 2.33 in W x 1.36 in H
|
| Special Features |
|
| Standard |
UL 20
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Supply_Voltage |
120/277
|
| Temperature_Rating |
32 to 104
|
| Type |
Universal
|
| Voltage Rating |
120/277
|
