Hubbell Hubbell HBL8300BL


Description

Industry Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Hospital Grade, 2-Pole3-Wire Grounding, 20A 125V, 5-20R, Blue,Single Pack

Modified Industry Description

20A 125V RECPT BLUE HOSPITAL

AD Description

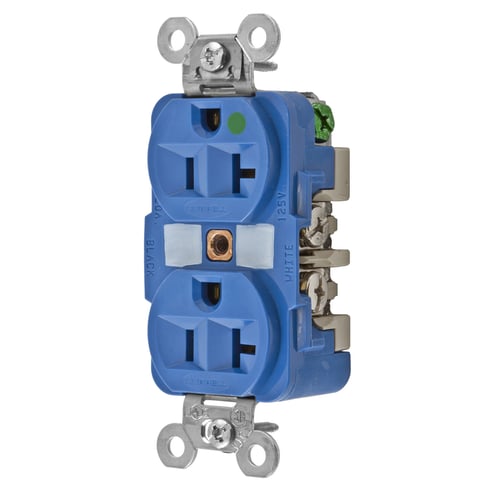

Hubbell® HBL® HBL8300BL Extra Heavy Duty Grounding Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Blue

Specifications

Amperage Rating
20
Application
Extra Heavy Duty Hospital Grade
Color
Blue
Connection
Back and Side Wired Screw Terminals
Conductor Size
#14 AWG to #12 AWG
Country of Origin
US
Enclosure
IP20
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Horsepower
1
Length1
4.1600
Material
Thermoplastic
Mounting
Screw Mount
NEMA_Rating
NEMA 5-20R
Number_Of_Poles
2
Phase
1
Series
Hospital Grade
Size
Standard Sized Product
Special Features

  • 0.036 in (0.9) nickel plated brass bypass power contacts
  • 1-piece nickel plated brass integral ground strap for greater corrosion resistance
  • 12 to 10 AWG stranded/solid copper wire only terminal accommodation
  • All hospital grade devices are marked with the green dot symbol, required by UL
  • Back wired ground terminal allows faster, easier installation
  • Barbed assembly arms reduce possibility of face/base separation
  • Brass ground contacts
  • Deep body design increases impact and chemical resistance
  • Deep body design with circuit ID face
  • Exclusive bypass contacts are made of nickel plated brass alloy, increasing blade retention, insuring reliable uninterrupted flow of power
  • External wiring clamps allow for visual inspection of the terminals
  • I.D. marking surface provides quick, sure circuit identification
  • Nickel plated brass clamping plate
  • Nickel plated brass mounting strap
  • Patented ground contact provides redundant grounding
  • PBT face and base
  • Plated brass terminal screw
  • Providing contact stability, this high performance material will reduce heat buildup giving you long lasting performance
  • Reinforced thermoplastic base provides superior thermal, electrical and mechanical properties
  • Square head, 10-thread bronze center rivet won't rotate, reduces stripping and resists corrosion
  • Stainless steel mounting screw
  • Stainless steel mounting screw material automatic self-grounding clip
  • UL 94 V-0 flammability
  • Unique bypass contact design
  • Unique strand containment feature on the terminal ''bundles'' the wire, ensuring 100% clamping of wire strands and reducing heat from the termination
  • Withstands 2000 VAC minimum dielectric voltage
Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Extra Heavy Duty Grounding
Voltage Rating
125
Wattage
2,500
