Burndy Burndy YAZ38TC12FX


Description

Industry Description

Cu compression long barrel flex conductor, single hole/W/ insp window, 500 flex1325/24, 535.3 kcmil, 1/2" stud, Tin plated, Pink, L99.

Modified Industry Description

CULUG-500FLX-LONG W/PORT

AD Description

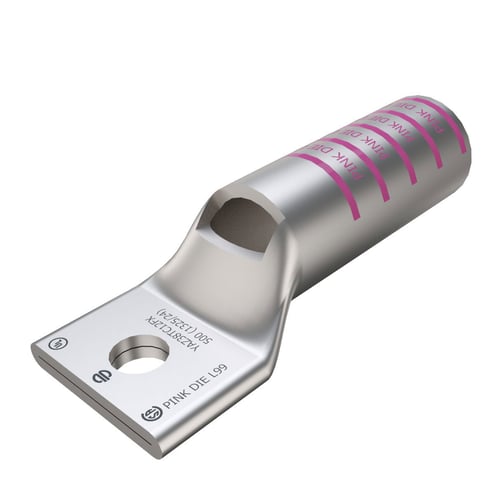

BURNDY® HYLUG YAZ38TC12FX 1-Hole Compression Lug With Inspection Window, 535.3 kcmil, Die Code: L99, 1/2 in Stud, Copper

Vendor Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.

Specifications

Application
Wire Termination
Brand Name
Burndy
Cable_Size
535.3 KCMIL, 500 KCMIL Flex, 1325/24, 300 SQ-MM For Class 5 Conductor
Color
Pink
Conductor Size
535.3
Country of Origin
US
Material
Copper
Number_Of_Holes
1
Package_Quantity
15.000
Special Features

  • 500 kcmil (1325/NO 24) DLO size, 535.5 kcmil flex conductor
  • Electro tin plated
  • Flex conductor
  • For hydraulic: Y35, Y39, Y750, PAT750 tool, (4), U38XRT die, Y46 tool, (4), U38XRT die with PUADP-1 adapter, dieless tools (number Of Crimps): Y644HS tool, (1), Y81KFT, (2),Y81KFTMBH, PAT81KFT-18V installation tool
Standard
UL 486A-486B
Stud_Size
1/2
Sub_Brand
HYLUG
Temperature_Rating
90
Type
1-Hole
Voltage Rating
600 VAC to 35 kV
