RAB Lighting RAB Lighting FX150T/PC

RAB Lighting FX150T/PC

Kirby Risk #: 2240194

UPC: 1981300079, 01981300079

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: RAB Lighting

Description

Modified Industry Description

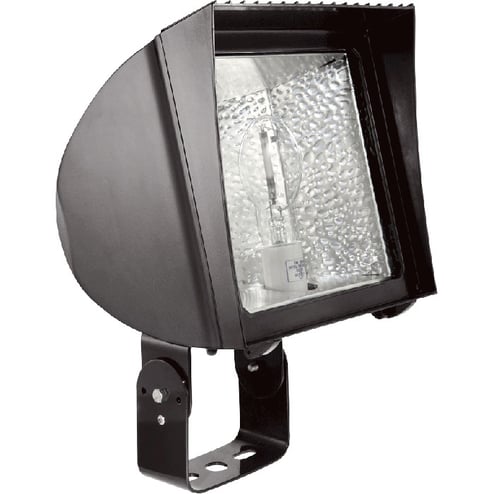

150W HPS BRONZE FLOOD W/ PHOTO CELL FIXTURE

AD Description

RAB FX150T/PC Floodlight Fixture,) ED17 HID Lamp, 170 W Fixture, 120 VAC, Bronze/Polyester Powder Coated Housing

Amperage Rating	2.3/1.5 A
Average_Life	24000
Ballast_Type	120 VAC HPF/Reactor
Brand Name	RAB Lighting
Fixture_Wattage	170
Housing_Finish	Bronze/Polyester Powder Coated
Housing_Material	Aluminum
Lamp_Type	ED17 HID
Lamp_Wattage	150
Lens_Type	Shock Resistant Glass
Lumens	16000
Special Features	170 W input watts 88% efficiency 94 LPW efficacy Anodized aluminum reflector rotates for horizontal or vertical lamp position Fins for heat dissipation extend lamp and ballast life Integra hood glare shield for friendly lighting when properly aimed Medium base 4 kV pulse rated socket Precision die-cast aluminum housing and lens frame with durable polyester powder coating Silicone gasket for durable weatherproofing & easy relamping Suitable for ground mounting Two field adjustable socket positions allow fine tuning of beam spread)
Voltage Rating	120
