Hubbell Hubbell CR15TR
Hubbell CR15TR
Kirby Risk #: 2232326
UPC: 78358514418, 783585144184, 00783585144184
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Tamper-Resistant Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 15A125V, 5-15R, Brown, Single Pack
Modified Industry Description
TAMP RES, COM GRD, 15A 125V, 5-15R,
AD Description

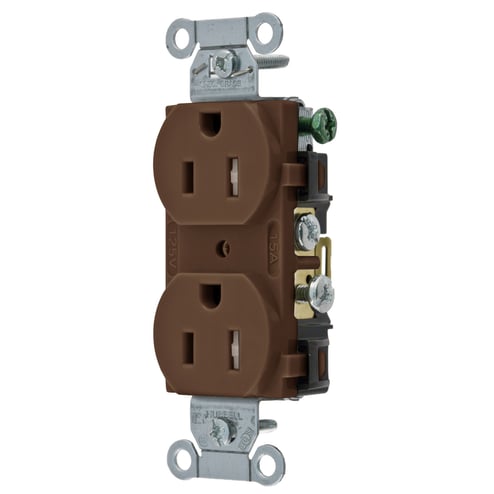

Wiring Device-Kellems CR15TR Duplex Self-Grounding Tamper Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Commercial Specification Grade
|
| Color |
Brown
|
| Connection |
Back and Side Wired
|
| Conductor Size |
#14 AWG to #12 AWG
|
| Country of Origin |
CN
|
| Dimensions |
3.281 in H x 1.322 in W x 1.147 in D
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Horsepower |
1/2
|
| Length1 |
4.2000
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
NEMA 5-15R
|
| Number_Of_Poles |
2
|
| Phase |
1
|
| Series |
Commercial Specification Grade
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Duplex Self-Grounding Tamper Resistant
|
| Voltage Rating |
125
|
| Wattage |
1,875
|
