Thomas & Betts Thomas & Betts X75M


Description

Industry Description

Series 35 3/4 Inch Conduit Body, Body Material Malleable Iron, Finish Zinc Plating with an Aluminum, Acrylic Coating for Use with Rigid/IMC Conduit

Modified Industry Description

3/4 INCH SERIES 35 CONDUIT BODY

AD Description

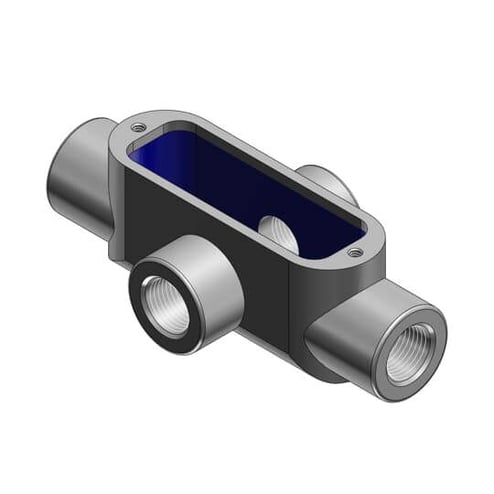

T&B® X75M 35 Series Type X Conduit Body, 3/4 in Hub, 9.5 cu-in Capacity, Malleable Iron, Zinc Plated with Aluminum Acrylic Coated

Vendor Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Specifications

Application
To Connect Conduit Sections
Brand Name
Thomas & Betts
Color
Gray
Configuration
X
Country of Origin
CN
Finish
Zinc Plated/Aluminum Acrylic Painted
Hub_Size
3/4
Material
Malleable Iron
Special Features

  • Act as mounting outlets for wiring devices and lighting fixtures
  • Features tapered, threaded NPT hubs
  • Make 90 deg bends in conduit runs
  • Provide access to conductors for maintenance and future system changes
  • Serve as pulling outlets during conductor installation
  • Zinc plated iron construction with aluminum acrylic coating provides durability, impact-resistant and corrosion-resistance
Standard
UL E2969
Sub_Brand
Thomas & Betts
Trade_Size
3/4
Type
Type X
Width_2
5.5000
