Thomas & Betts Thomas & Betts 10CA


Description

Industry Description

Type CA Aluminum Split-Bolt Connector with Spacer and Washer for Use on Copper, Aluminum Conductors. Conductor Range for Equal Main and Tap 2/0 Str.-2 Sol.

Modified Industry Description

SPLIT BOLT CONN

AD Description

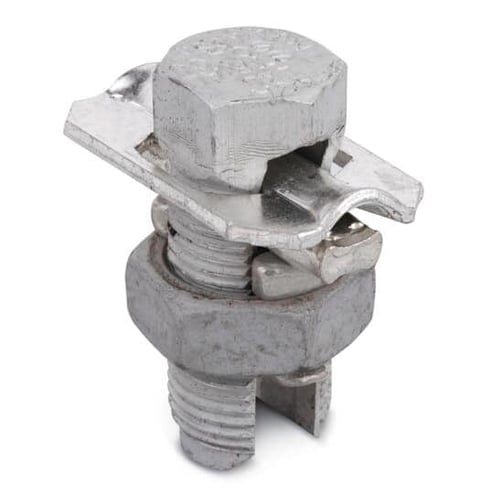

Blackburn® 10CA Type CA Split Bolt Connector With Spacer, Washer, 2 to 2/0 AWG Solid/Stranded Aluminum/Copper Conductor, 7/8 x 2-1/16 in, Aluminum

Specifications

Application
Splicing, tapping or terminating conductors in power and grounding electrical connection.
Bolt_Size
7/8 x 2-1/16
Brand Name
Thomas & Betts
Color
Metallic
Conductor Size
2 to 2/0
Country of Origin
MX
Finish
Tin Plated
Material
Aluminum
Package_Quantity
25
Special Features

  • 2/0 AWG stranded to 2 AWG solid conductor range for equal main and tap
  • 2/0 AWG stranded to 6 AWG solid conductor range min tap with one max main
  • 25 Pieces/Pack
  • Blackburn® contax paste recommended with the connector
  • Bolt and nut are anodized to prevent seizing of threads and reduce galvanic corrosion when in contact with copper conductor
  • Bolt, nut and washer made of high-strength aluminum alloy
  • Pressure bar and contoured spacer made of electrolytic copper
  • Spacer is completely tin plated
Standard
UL E9809
Sub_Brand
Blackburn
Type
Type CA
