Hubbell Hubbell 5262R
Hubbell 5262R
Kirby Risk #: 2209222
UPC: 78358512769, 783585127699, 00783585127699
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Hubbell-Pro, Industrial Grade, 15A 125V, 2-Pole 3-WireGrounding, 5-15R, Red, Single Pack
Modified Industry Description
RCPT, DUP SB, HUBPRO, 15A 125V, SM
AD Description

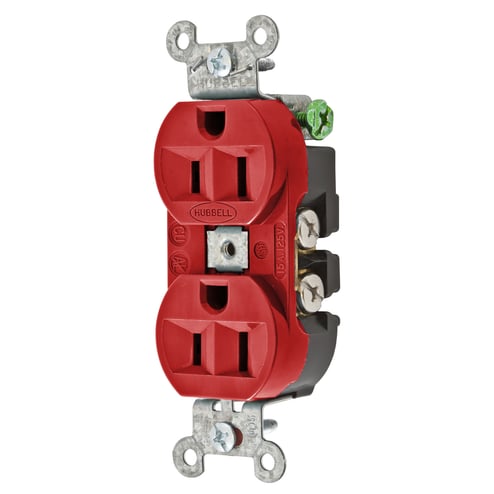

Wiring Device-Kellems Hubbell-Pro™ 5262R Duplex Heavy Duty Self-Grounding Standard Traditional Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Red
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Hubbell-Pro Heavy Duty
|
| Color |
Red
|
| Connection |
Back and Side Wired
|
| Conductor Size |
#14 AWG to #12 AWG
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Length1 |
4.0000
|
| Material |
Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
5-15R
|
| Number_Of_Poles |
2
|
| Phase |
1
|
| Series |
Hubbell-PRO
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum continuous 75?°C; minimum -40?°C (w/o impact)
|
| Type |
Traditional Duplex
|
| Voltage Rating |
125
|
| Wattage |
1,875
|
