Thomas & Betts Thomas & Betts A114

Name: Thomas & Betts A114
Brand: Thomas & Betts
SKU: 2203930
Price: 0.49 USD
Availability: InStock

Thomas & Betts A114

Kirby Risk #: 2203930

UPC: 78621080823, 786210808239, 30786210808230

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Thomas & Betts

Description

Industry Description

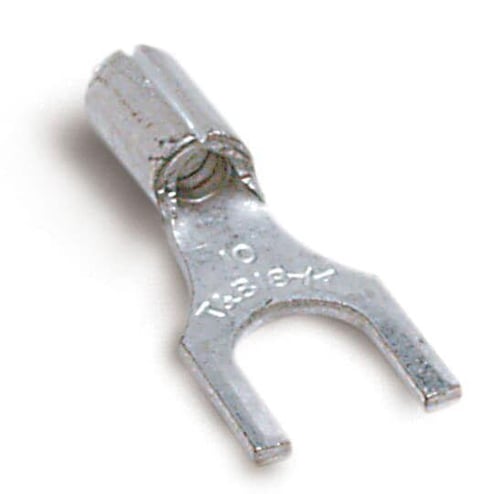

Non-Insulated Fork Terminal, Length 0.75 Inch, Width 0.31 Inch, Bolt Hole #8, Wire Range #22-16 AWG, Copper, Tin Plated

Modified Industry Description

NON-INS FORK TERM, 22-16, #8, METAL

AD Description

Sta-Kon® A114 A Series Non-Insulated Fork Terminal, 22 to 16 AWG Conductor, 3/4 in L, Brazed Seam/Serrated Barrel, Copper, Metallic

Brand Name	Thomas & Betts
Color	Metallic
Conductor Size	22 to 16
Country of Origin	US
Finish	Electro-Plated Tin
Material	Copper
Package_Quantity	1000
Special Features	Brazed seam barrel is serrated for high pull-out value Non-insulated fork terminals are made of electrolytic copper for high conductivity Serrated barrel increases grip-on wire They can be installed with crimping tools having a single indentor or double indentor recommended for solid wire WT110M, WT111M, WT112M, WT2000, ERG4001, ERG4002 recommended tools
Standard	UL E9809
Stud_Size	#8
Sub_Brand	Sta-Kon
Type	Non-Insulated
Voltage Rating	600
