Burndy Burndy YAV10T7


Description

Industry Description

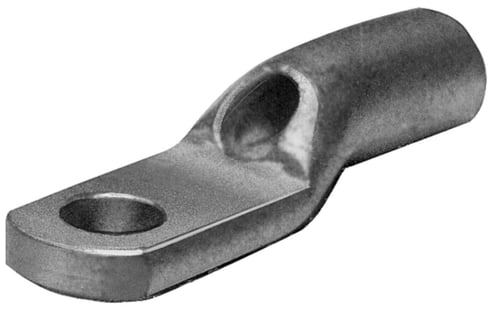

Copper Compression Lug, Heavy Duty, Ring Tongue, 1 Hole w/ Inspection Hole, 12-10 AWG/ 14 AWG(Str), #4-#6 Stud, Short Barrel, Tin Plated.

AD Description

BURNDY® HYLUG YAV10T7 1-Hole Heavy Duty Non-Insulated Compression Lug With Inspection Hole, 12 to 10 AWG Solid/Stranded Copper Conductor, #4 to #6 Stud, Copper

Vendor Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.

Specifications

Application
For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, Industrials, Hospitals, Electric Utilities, Shipboard And Marine, Computers, Steel Mills, Mining Equipment And Other Equipment That Is Subject To Vibration Or Requiring Dependable Electrical Performance
Country of Origin
US
Length1
0.8900
Material
Copper
Special Features

  • 0.78 in hole center to barrel end, 0.24 in hole center to barrel
  • Also can be used on solid conductor
  • AN 12-AN 10 aircraft cable size, 6 (7) to 9 (37) navy cable size, 12 to 10 copper stranded conductor
  • Bulk packaging
  • Double thick tongue
  • Extra copper material assures the compression connector will operate cooler than the conductors it connects
  • For non-ratchet: Y10D, Y10-22 tool, ratchet: Y8MRB-1, MR20, MR8G98, MR8-9Q tool with N10HT, N10HT-24 die installation tool
  • Internally beveled barrel
  • Manufactured from seamless pure electrolytic copper tubing
  • No seams to split resulting in a very high quality electrical connection
  • Produced from tubular copper
  • Provides a very strong terminal tongue
  • Provides easy cable entry, especially for flexible conductors
  • Provides easy visual check for proper conductor insertion
  • Provides long lasting durable corrosion resistance
  • Provides maximum conductivity, low resistance and excellent ductility for crimping
  • Seamless tubular crimp barrel design
Standard
UL467;Military Specified (Mil-Spec)
Sub_Brand
HYLUG
Type
Ring Tongue
