Burndy Burndy Y81KFT


Description

Industry Description

6-Ton 4-POINT® Dieless Latch Head Crimper, Self Contained Hydraulic, #8 AWG - 1000 kcmil CU, #8 - 750 kcmil AL

Modified Industry Description

DIELESS HYPRESS SELF CONTAINED 6 TON

AD Description

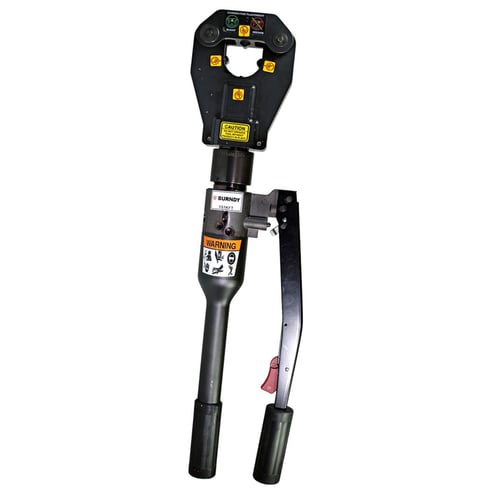

BURNDY® 4-Point® HYPRESS™ Y81KFT Battery Actuated Dieless Hand Operated Self-Contained Hydraulic Crimping Tool, 8 AWG to 1000 kcmil Copper Crimping, 6 ton Crimping, 25.6 in OAL

Vendor Description

The Y81KFT 4-POINT® dieless HYPRESS™ is a hand operated 6 ton hydraulic crimping tool for use on a wide variety of terminal and splice compression applications. The Y81KFT incorporates a dieless latch style head that provides easy tool removal from continuous conductor runs and eliminates the need to purchase and maintain dies. The head rotates 360 deg relative to the handles and is mated to a patented rapid advance pump. The Y81KFT weighs only 12 pounds and delivers 6 tons of crimping force. The result is easy termination and splicing using BURNDY® HYLUG™ and HYLINK™ terminals and splices. The Y81KFT is supplied with a molded high impact plastic case and comes complete with a 5-year limited warranty. Y81KFT dieless HYPRESS™ Range Taking Capabilities: The Y81KFT provides range taking capabilities that is UL Listed and CSA Certified for Copper (Code, Compact and Flex) and Aluminum (Code and Compact) conductors when used in conjunction with BURNDY® HYLUG™ terminals and HYLINK™ splices.

Specifications

Application
For Use On Conductor: Copper Cable: 8 - 1000 KCMIL, 8 - 777.7 KCMIL (750 Nominal Flex Wire Size)Flex, Aluminum Cable: 8 - 750 KCMIL, Aluminum Pin Adapters: 8 - 750 KCMIL, For Use On Terminals: YA, YA-L, YA-FX, YAV, YA-L-FX, YA-A, For Use On Splices: YS, YS-L, YS-T, Y-R, YSV-FXB, YS-A, For Use On Pin Adapter: AYP, AYPO
Brand Name
Burndy
Country of Origin
US
Crimping_Force
6
Dimensions
7.7 in H x 2.5 in W
Function
Flip Latch Head Provides Easy Tool Removal From Continuous Conductors, Dieless System Eliminates The Need To Purchase And Maintain Dies, 360 DEG Rotational Head Allows User Access Into Tight Areas With Ease, Pop-Off Pressure Relief Valve Provides Audible Indication That Crimp Is Complete, Comfort Grip Handles Help Ease Fatigue With Continuous Use, High Speed Ram Advance Provides Faster Crimp, Handle Trigger Drain For Convenient Ram Retraction
Operating_Pressure
10000
Overall_Length
25.6
Package_Quantity
1
Special Features

  • 360 deg head rotation
  • Advanced high speed pump design
  • Audible pressure pop-off valve and die embossment providing 360 deg inspectability
  • Dieless installation system
  • Durable high impact formed carrying case
  • Flip top head design
  • Handle trigger release
Standard
RoHS Compatible with Exemption
Sub_Brand
Burndy
Tool_Type
Self-Contained Hydraulic Crimper
Type
Battery Actuated Dieless Hand Operated Self-Contained
