Panduit Panduit H100X044H1C


Description

Industry Description

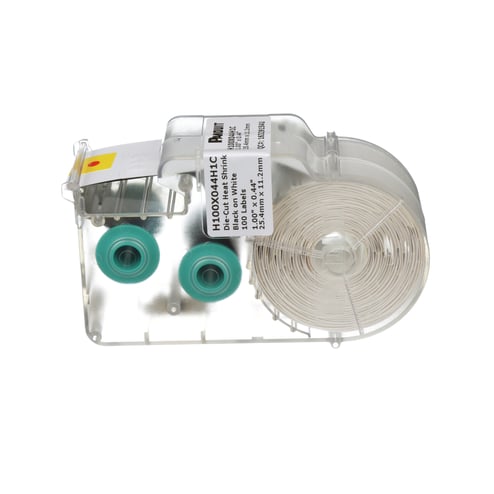

The portable printer die-cut heat shrink labels in white are made of military-grade polyolefin. They measure 0.25" (6.4mm) diameter, 1" (25.4mm) length, and 0.44" (11.2mm) width and have a wire range of 16–10 AWG. The fast-loading P1™ label cassette includes both label material and ribbon for easy label changing. There are 100 labels per cassette.

Modified Industry Description

1 X 0.44 X 0.25 IN HEAT SHRINKABLE POLYOLEFIN, P1 CASSETTE

AD Description

Panduit® P1™ H100X044H1C Die-Cut Military Grade Heat Shrink Label Cassette, 16 to 10 AWG, White Marker, Polyolefin

Specifications

Brand Name
Panduit
Color
White
Country of Origin
CRI
Legend
Black
Material
Polyolefin
Package_Quantity
1
Shrink_Ratio
3:1
Size
1.00 X 0.44
Special Features

  • Each cassette contains a roll of die-cut non-adhesive flattened polyolefin
  • Fast loading label cassette includes both label material and ribbon to make changing labels easy
  • P1™ Label Cassette contains an integrated memory device for automatic formatting, recall of last legend used, and number of labels remaining in the cassette
  • Shrink ratio 3:1
  • There are 100 labels per cassette
  • Use with PanTher™ LS8E or Cougar™ LS9 hand-held thermal transfer printers
Standard
MIL-M-81531 and MIL-STD-202G Method 215K, Solution A, C, and D. UL Standard 224 for flammability.
Sub_Brand
Panduit
Temperature_Range
275
Type
Die-Cut Military Grade
Width_2
6.1500
Width_3
8.0000
