Hubbell Hubbell HBL3525C

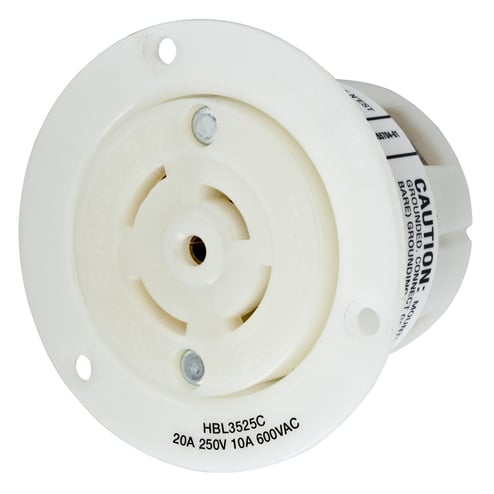

Hubbell HBL3525C
Kirby Risk #: 2181179
UPC: 78358503994, 783585039947, 00783585039947
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Receptacle, 20A 250V DC/600V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, White
Modified Industry Description
20A 250V/600V FLANGE RECPT
AD Description
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL3525C Flanged Grounding Single Standard Locking Receptacle, 600 VAC/250 VDC, 10/20 A, 4 Poles, 5 Wires, White
Specifications
| Amperage Rating |
20/10
|
|---|---|
| Application |
Insulgrip
|
| Brand Name |
Hubbell
|
| Color |
White
|
| Connection |
Screw Terminal
|
| Conductor Size |
#16 AWG to #8 AWG
|
| Country of Origin |
PR
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Nylon
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
4
|
| Number_Of_Wires |
5
|
| Phase |
Multi Phase
|
| Size |
3.06 X 3.06 X 2.23
|
| Special Features |
|
| Standard |
Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Flanged Receptacle
|
| Voltage Rating |
600/250
|
| Wattage |
12,000
|
