TPI TPI H2917084S


Description

Industry Description

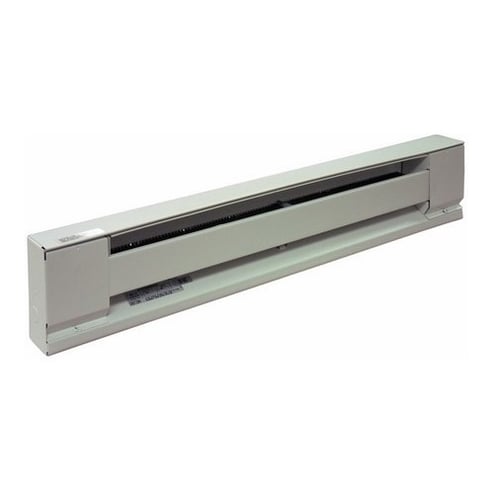

Electric Baseboard - Stainless Steel Element Convection Heater, 240/208 V, 1 PH, 7.3/6.3 AMP, Steel Housing Material, Wall Mounting, Dimensions- 84 2-1/2 Depth X 6 Height IN, 1750/1313 WTT, BTU Rating- 5950/4464, Ivory

Modified Industry Description

1750/1313W 240/208V 84IN Baseboard

AD Description

TPI H2917084S 2900S 1-Phase Standard Electric Baseboard Convection Heater, 5950/4464 Btu/hr Capacity, 208/240 VAC, 1750/1313 W Power Rating, Wall Mount

Specifications

Amperage Rating
6.3/7.3
Application
Indoor-Residential/Commercial/Some Industrial
Brand Name
TPI
Country of Origin
US
DimensionsInches
84 Length X 2-1/2 Depth X 6 Height IN
Housing_Material
Steel
Model
H2917-084S
Mounting
Wall
Phase
1
Special Features

  • A full length wireway provided along the back of the heater
  • Heater can be mounted to the wall by using the key hole knockouts every 4 in at the back of the heater
  • Optional in-built thermostats field installed in the junction box
  • Over temperature thermal limit extends entire length of heated area
  • Painted 22 ga steel front with 20 ga junction boxes located on each end of the heater - junction boxes contain quick connect cable clamps and 6 in ground lead wires
  • Stainless steel heating element and aluminum fins
Standard
ETLus Listed
Sub_Brand
TPI
Trade_Size
84
Type
Electric Baseboard
Voltage Rating
208/240
Wattage
1313/1750
