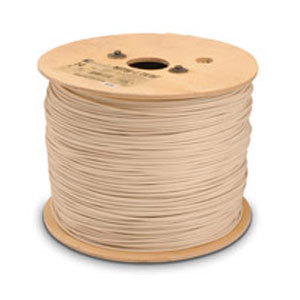

Southwire Southwire 10 SOL CU THHN-THWN AWM WHITE


Description

Industry Description

10 SOL SD CU THHN-THWN-AWM WHITE 2500 FT

Modified Industry Description

10 THHN SOLID WHITE 2500 FT COPPER

AD Description

Southwire® 11596405 Type THWN THHN Building Wire, 600 VAC, (1) 10 AWG Annealed Solid Copper Conductor, 2500 ft L, White

Vendor Description

General Cable® copper building wire consists of types XHHW-2, THHN/THWN-2 and TFFN along with Canadian constructions such as RW90, RWU90 and T90 that come in a variety of colors and feature the high speed, extra low friction jacket designed to improve installation even under the most difficult conditions. Our high quality copper building wire is manufactured in the US and delivers long term, reliable performance in many types of building applications.

Specifications

Amperage Rating
30
Application
Commerical
Brand Name
Southwire
Color
White
Conductor Material
Copper
Conductor Type
Solid
Conductor Size
10
Country of Origin
USA
Insulation_Material
PVC
Jacket_Material
Nylon
Number Of Conductors
1
Outside_Diameter
150
Package_Quantity
2500
Special Features

  • 20 mil insulation thickness
  • 30 A at 60 deg C, 30 A at 75 deg c and 30 deg C at 90 deg C allowable ampacities
  • 4 mil jacket thickness
  • Allowable ampacities shown are for general use as specified by the national electrical Code, 2005 Edition, section 310.15 unless the equipment is marked for use at higher temperatures the conductor ampacity
  • Allowable ampacities THHN dry locations, THWN-2 wet or dry locations, for ampacity derating purposes at 90 deg C
  • Allowable ampacities when terminated to equipment for circuits rated 100 A or less or marked for size 14-1 AWG conductors, MTW wet locations or when exposed to oil or coolant at 60 deg C
  • Allowable ampacities when terminated to equipment for circuits rated 100 A or marked for conductors larger than size 1 AWG, THWN-2 when exposed to oil or coolant, MTW dry locations at 75 deg C
  • Conductor sizes 2 AWG and larger listed and marked sunlight resistant in black only
  • Conductors shall be annealed copper, insulated with high-heat and moisture resistant PVC jacketed with abrasion, moisture, gasoline and oil resistant nylon or listed equivalent, as manufactured by Southwire® company or approved equal
  • Conductors shall be UL listed type MTW or THHN or THWN-2 gasoline and oil resistant II, suitable for operations at 600 volts as specified in the national electrical code
  • For dry locations at temperatures not to exceed 90 deg C
  • For use in wet or dry locations at temperatures not to exceed 90 deg C or not to exceed 75 deg C when exposed to oil or coolant
  • Southwire® type THHN or THWN or MTW copper conductors are annealed (soft) copper, insulated with a tough heat and moisture resistant polyvinyl chloride (PVC), over which a nylon (polyamide) or UL listed equal jacket is applied
  • Thermoplastic insulation/nylon sheath heat, moisture gasoline and oil resistant
Sub_Brand
Southwire
Type
THHN
Voltage Rating
600
