Hubbell Hubbell HBL7863D
Hubbell HBL7863D
Kirby Risk #: 2164360
UPC: 78358520290, 783585202907, 00783585202907
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Control, MotorDisconnect, 3-Pole, 60A 600V, Back and Side Wired
Modified Industry Description
60A 600V - DISCONNECT SWITCH, 3 POLE
AD Description

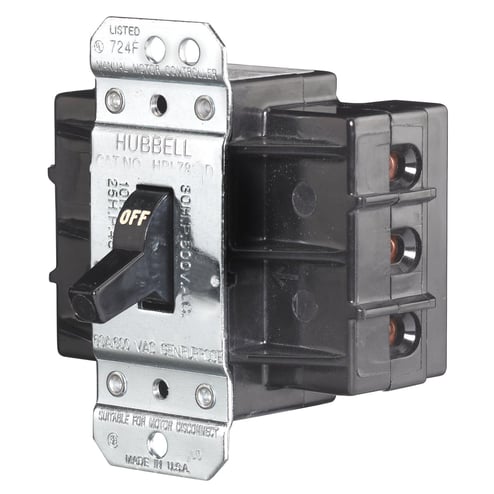

Wiring Device-Kellems Circuit-Lock® HBL7863D Standard AC Motor Disconnect Switch, 600 VAC, 60 A, 30 hp, 3 Poles
Specifications
| Amperage Rating |
60
|
|---|---|
| Application |
Motor Starting w/o Overload Protection
|
| Brand Name |
Hubbell
|
| Connection |
Pressure Screw Terminals
|
| Country of Origin |
PR
|
| Enclosure |
None
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Stainless Steel
|
| Mounting |
Screw Mount
|
| Number_Of_Poles |
3
|
| Operating_Cycles |
10k
|
| Operating_Temperature |
Minimum Continuous -40 Deg C without Impact
|
| Phase |
3
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL508
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Open Switch
|
| Voltage Rating |
600
|
| Width_2 |
7.2000
|
| Width_3 |
7.2000
|
