Hubbell Hubbell HBL16R93D

Name: Hubbell HBL16R93D
Brand: Hubbell
SKU: 2164359
Price: 511.11 USD
Availability: InStock

Hubbell HBL16R93D

Kirby Risk #: 2164359

UPC: 78358520276, 783585202761, 00783585202761

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Hubbell

Description

Industry Description

Hubbell Wiring Device Kellems, REPLACES HBL16R93

Modified Industry Description

60A 600V 3P DISC SW W/NEMA 3R

AD Description

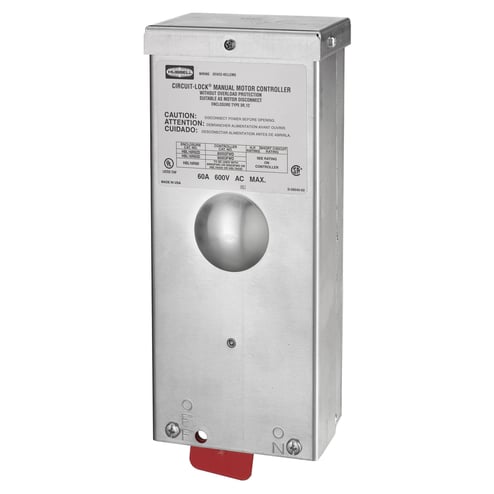

Wiring Device-Kellems CIRCUIT-LOCK® HBL16R93D Metallic Enclosed AC Motor Disconnect Switch With Switch, 600 VAC, 60 A, 36000 W

Amperage Rating	60
Application	Motor Starting w/o Overload Protection
Brand Name	Hubbell
Connection	Back/Side Wired Pressure Screw
Country of Origin	US
Enclosure	NEMA 3R
Environmental_Conditions	-40 to 75 deg C Temperature
Material	Aluminum
Mounting	Threaded
Number_Of_Poles	3
Operating_Cycles	10000
Operating_Temperature	Minimum Continuous -40 Deg C without Impact
Phase	3
Size	Standard Sized Product
Special Features	10 hp at 240 VAC, 25 hp at 480 VAC, 30 hp at 600 VAC power rating at 3-phase Aluminum cover and base, base is pre-drilled for rear surface mounting Front activated lever allows mounting in tight spaces Raintight drip shield top, rolled seamless sides Switches and lighting controls, industrial grade, manual motor controllers, motor disconnects Wiring conduit knockouts
Standard	UL508
Sub_Brand	Hubbell Wiring Device-Kellems
Type	Metallic Enclosed
Voltage Rating	600
Width_2	9.1000
Width_3	9.1000
