Siemens Siemens LXD63H600L

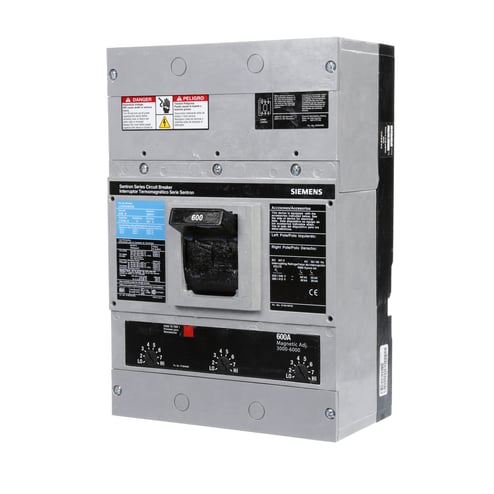

Siemens LXD63H600L
Kirby Risk #: 2161697
UPC: 78364323686, 783643236868, 00783643236868
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. HIGH INSTANTANEOUS RANGE ETI BREAKER LD FRAME WITH STANDARD BREAKINGCAPACITY AND NON INTERCHANGEABLE TRIP. MEETS UL 489 / IEC 60947-2 STANDARDS. 600A 3-POLE BREAKER (25KAIC AT 600V) (35KAIC AT 480V). SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA2J6500) WIRE RANGE 3/0AWG - 500KCM (CU) / 4/0AWG - 500KCM (AL).DIMENSIONS (W x H x D) IN 7.5 x 11 x 4.
AD Description
Sentron™ LXD63H600L Molded Case Circuit Breaker, 600 VAC, 600 A, 35 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Vendor Description
SiemensSentronSeriesCircuit Breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens SentronSeries circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
600
|
| Application |
High Instantaneous Range ETI Breaker
|
| Connection |
Line/Load lugs installed
|
| Country of Origin |
MX
|
| Dimensions |
7 in L x 9 in W x 15 in H
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
LD
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
35
|
| Length1 |
15.0000
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Special Features |
|
| Standard |
UL/HACR
|
| Sub_Brand |
SENTRON
|
| Temperature_Rating |
40
|
| Type |
LXD6
|
| Voltage Rating |
600
|
