Burndy Burndy GX2929


Description

Industry Description

Mechanical Grounding Connector, Cable Cross Connection, 2/0 AWG (Sol.) - 250 kcmil ( Run), 2/0 AWG (Sol.) - 250 kcmil ( Tap), 3/8" Stud.

Modified Industry Description

MECH GRD CONN CBL CROSS CONNECTION 2/0 AWG SOL - 250 KCMIL RUN 2/0 AWG SOL - 250 KCMIL TAP 3/8 STUD

AD Description

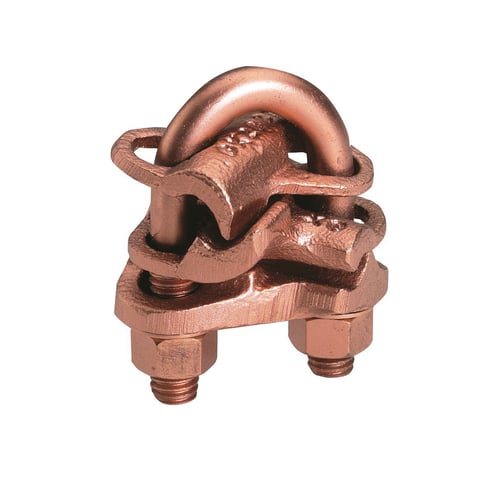

BURNDY® DURIUM™ GX2929 Mechanical Grounding Connector, 2/0 AWG to 250 kcmil Conductor, Copper Alloy

Vendor Description

All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL 467 listed for direct burial applications in earth or concrete.

Specifications

Application
For Cross Connecting A Wide Range Of Copper Cable, Direct Burial In Earth Or Concrete
Bolt_Size
3/8 In
Brand Name
Burndy
Conductor_Range_Main_Primary
Groove A: 2/0 AWG Solid - 250 KCMIL, Groove B: 2/0 AWG Solid - 250 KCMIL
Conductor Size
2/0 AWG to 250 kcmil
Country of Origin
MX
Finish
Unplated
Material
Copper Alloy
Package_Quantity
1
Special Features

  • 240 in-lb installation torque
  • 3-gang/8 in bolt size
  • Acceptable for direct burial in earth and concrete
  • Groove A: 2/0 - 4/0 AWG solid - 1/0 - 250 kcmil stranded, groove B: 2/0 - 4/0 AWG solid - 1/0 AWG - 250 kcmil stranded (main/primary) conductor range
  • High copper alloy ground connector for cross connecting a wide range of cable
  • Made of high strength copper alloy
  • The high copper alloy cast body, Durium U-bolts, nuts and lock washers make the GX suitable for burial in soil or concrete
Standard
UL467 Listed, RoHS Compatible
Sub_Brand
Burndy
Type
GX
