Hoffman Hoffman AXD18


Description

Industry Description

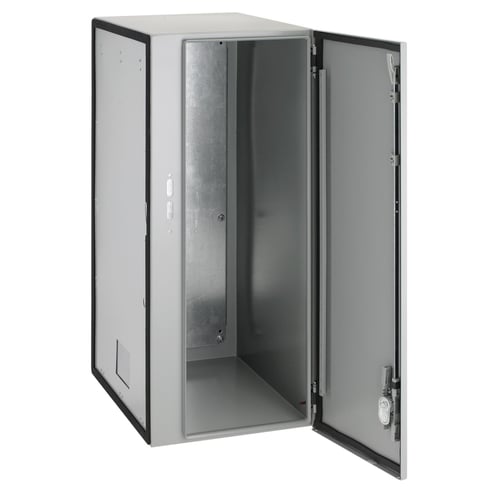

Sequestr External Disconnect, Type 12, 34.45x14.00x18.12, Gray, Steel

Modified Industry Description

18 IN DEEP EXTERNAL DISCONNECT

AD Description

Hoffman SEQUESTR™ AXD18 A70D External Disconnect Enclosure, 34.45 in L x 14 in W x 18.12 in D, NEMA 12/IP55 NEMA Rating, Steel

Vendor Description

Retrofit disconnect enclosures to isolate incoming power and help mitigate arc flash occurrences by moving the disconnect switch to the Sequestr Enclosure. Power is passed-through to the main enclosure.

Specifications

Application
Retrofit disconnect enclosures to isolate incoming power and help mitigate arc flash occurrences by moving the disconnect switch to the SEQUESTR™ Enclosure. Power is passed-through to the main enclosure.
Brand Name
Hoffman
Color
Gray
Country of Origin
US
Cover_Type
Hinged
Material
Steel
NEMA_Rating
NEMA 12/IP55
Series
A70D
Size
34.45x14.00x18.12 in
Special Features

  • 16 ga steel construction
  • Bonding provision on door
  • Continuously welded and ground seams all around
  • Hidden hinges
  • Hinged on right side
  • Interlocks doors of main control cabinet when disconnect switch is powered on
  • Maintains UL 12 rating
  • Preferred disconnect cut-out
  • Provision for pass-through power into the main cabinet blank plate for customer modification
  • quarter turn screwdriver slot latch
Standard
UL 508A Listed, Type 12, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 12, File No. E61997, NEMA/EEMAC Type 12, CSA File No. 42186: Type 12, IEC 60529, IP55
Sub_Brand
Hoffman
Type
SEQUESTR™ External Disconnect, 12
