TPI TPI HF4820T2RPW
TPI HF4820T2RPW
Kirby Risk #: 2143463
UPC: 68633432819, 686334328197, 00686334328197
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: TPI
Description
Industry Description

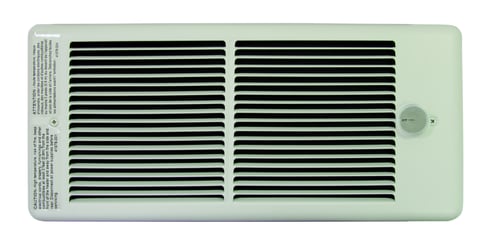

Register Style Fan Forced Wall Heater, Maximum Operating Temperature- 90 (Thermostat) DEG F 1 PH, 2000/1500 WTT, 240/208 V, Wall Mounting, Steel Housing Material, Dimensions- 14-1/2 Width X 7-1/8 Height X 3-1/2 Depth IN, BTU Rating- 6826/5120, 8.3/7.2 AMP
Modified Industry Description
2000/1500W 240/208V Register Style
AD Description
TPI HF4820T2RPW 4800 1-Phase Fan Forced Register Style Standard Wall Heater With In-Built Double Pole Thermostat and Wall Box, 6826/5120 Btu/hr Capacity, 208/240 VAC, 2/1.5 kW Power Rating
Specifications
| Amperage Rating |
8.3 A, 7.2 A
|
|---|---|
| Application |
Indoor-Residential/Commercial
|
| Brand Name |
TPI
|
| Color |
White
|
| Country of Origin |
US
|
| DimensionsInches |
14-1/2 Width X 7-1/8 Height X 3-1/2 Depth IN
|
| Finish |
Powder Coated
|
| Flow_Rate |
70
|
| Housing_Material |
Steel
|
| Maximum_Operating_Temperature |
90 (Thermostat) DEG F
|
| Model |
HF4820T2RPW
|
| Mounting |
Wall
|
| Phase |
1
|
| Power_Rating |
2000/1500
|
| Series |
4800
|
| Special Features |
|
| Speed |
2200
|
| Standard |
cETLus Listed
|
| Sub_Brand |
TPI
|
| Type |
1-Phase Fan Forced Register Style Standard
|
| Voltage Rating |
240/208
|
| Wattage |
1,500/2,000
|
