Burndy Burndy YDS25AT


Description

Industry Description

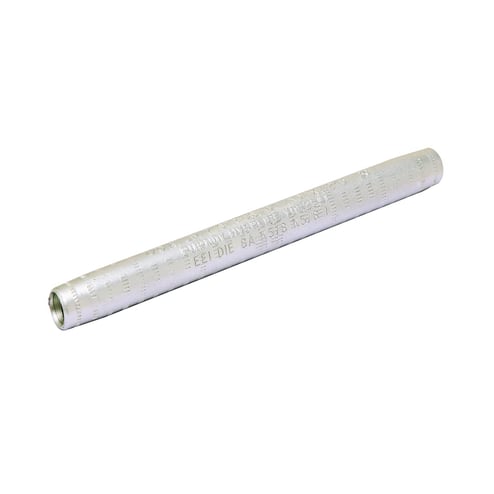

Aluminium Hysplice, 7-1/4 in L, Full Tension Sleeve for All Aluminum Compressed and Compact Conductors,Die index:243.

AD Description

BURNDY® Hysplice™ YDS25AT YDS-AT Full Tension Compression Sleeve, 1/0 AWG Aluminum/Compressed Aluminum/Compact Aluminum/Stranded Copper Conductor, Die Code: BG/243, Aluminum

Vendor Description

Single aluminum sleeve designed for service drop or short span overhead distribution lines. Installed with OH25 one-hand tool, and other standard tooling. Pre-filled with PENETROX joint compound and color coded capped.

Specifications

Application
For All Aluminum Compressed And Compact Conductors
Country of Origin
US
Insulation
True
Length1
7.2700
Material
Aluminum
Special Features

  • 1/0 (6/1) AWG ACSR/1/0 AWG aluminum/copper stranded conductor
  • 1/0 AWG ACSR compact cable
  • Tools, die set catalog number, and (number of crimps):md6, md7 tool, w243 die, (6) or bg die, (12), y35, Y750 tool, bg or u243 die, (3), y45 tool, u243 die with pt-6515 adapter, (3), Y46 tool, u243 die with puadp-1 adapter
Sub_Brand
HYSPLICE
Type
YDS-AT
