Hubbell Hubbell S1TFCAL
Hubbell S1TFCAL
Kirby Risk #: 2135897
UPC: 783585371108, 00783585371108, 78358537110
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, In-Floor Delivery Systems, SystemOneUniversal Cover for Tile Assembly, Aluminum Finish
Modified Industry Description
Aluminum Universal Cover for Tile Assembly
AD Description

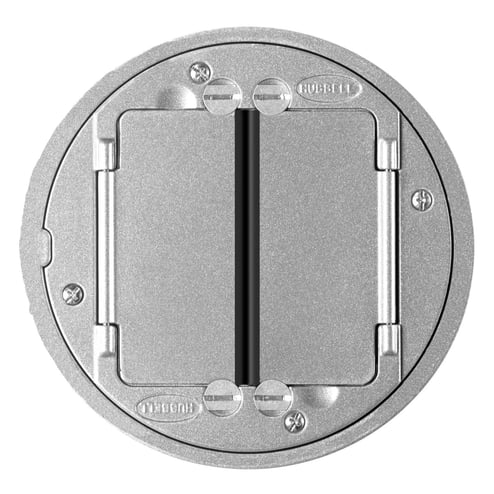

PREMISE WIRING SystemOne™ S1TFCAL Universal Cover, 5-5/8 in Dia, Die Cast Aluminum
Vendor Description
Hubbell SystemOne™ is an innovative system that provides consumers with the flexibility to create personal solutions for the most demanding multi-service applications for both flush in-floor boxes and fire rated poke-throughs. Hubbell SystemOne™ features a unique universal cover assembly and a wide variety of application sub plates that install on both Hubbell flush floor boxes and fire rated poke-throughs. Whatever the application, Hubbell SystemOne™ delivers a consistent, aesthetic and functional solution for applications "in-the-floor" or "through-the-floor" for power, voice, data, and a/V requirements.
Specifications
| Application |
Tile Cover and Flange
|
|---|---|
| Brand Name |
Hubbell
|
| Cable_Entry |
Through Cover
|
| Color |
Aluminum
|
| Construction |
Fabricated
|
| Country of Origin |
US
|
| Finish |
Powder Coated
|
| Gang |
1
|
| Knockouts |
None
|
| Material |
Die Cast Aluminum
|
| Mounting |
(3) Screw Mount
|
| Number_Of_Outlets |
No Devices
|
| Shape |
Round
|
| Size |
Round
|
| Special Features |
|
| Standard |
UL 514A
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Tile Ring
|
| Width_2 |
5.6080
|
| Width_3 |
8.6250
|
