3MÂ™ Motor Lead Pigtail Splicing Kits 5380 Series are designed for splicing motor lead cables to incoming feeder cables. These kits are removable and reusable. These kits can accommodate pigtail (stub) connections, 5/8 kV shielded and non-shielded feeders. The spliceÂ’s main component, the slip-on splice cover, is made from EPDM rubber. Mastic is used for the moisture seal on the pigtail kits. The kits utilize a high dielectric constant (K) stress control termination for the feeder cableÂ’s electrical stress control.These kits are designed to be used with copper compression lugs. After being crimped onto the cables, the lugs are bolted together, then insulated and sealed with the 3M Motor Lead Splicing Kits. Each kit contains all the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3MÂ™ ScotchlockÂ™ Copper Compression Lugs 30000 Series, or other UL listed copper lugs, can be used. Kit contents include:Â• (3) Lug covers Â• (3) Cold Shrink terminations Â• (12) Mastic sealing strips Â• (3) Copper tape strips Â• (3) Cleaning kits Â• (6) Tubes of silicone grease Â• (3) Cold Shrink jacket tubes Â• (3) Constant force springs Â• (3) Cable ties Â• (3) Ground straps Â• (1) Instruction sheet
Modified Industry Description
Motor Lead Splicing Kit, 2 TO 250 MCM MOTOR LEAD, 1/0 TO 250 AWG FEEDER

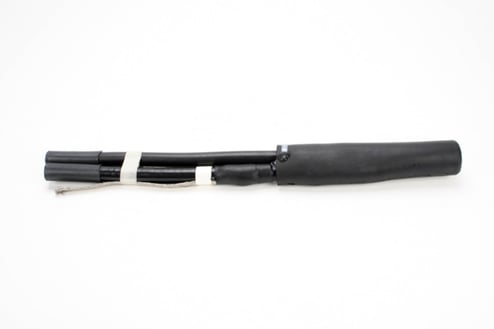

3M™ 5383 5380 Pigtail Motor Lead Splice Kit, 5/8 kVAC, 1/0 AWG to 250 kcmil Conductor, 4 in L Splice, EPDM
3M™ 5380 Series Motor Lead Pigtail Splice Kit is designed for splicing motor lead cables to incoming feeder cables. This kit makes use of high dielectric-constant stress-control termination for feeder cables to reduce the size and electrical stress. It is rated for 5/8 kV-rated applications. The kit accommodates shielded and non-shielded cables.
