Thomas & Betts Thomas & Betts SP4SS
Thomas & Betts SP4SS
Kirby Risk #: 2134111
UPC: 78378612260, 783786122608, 00783786122608, 30783786122609
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description
Short Stud Single Service Post Connectors for Conductors 1 - 8 Stranded, 2 - 8 Solid, Stud Size 3/8 - 16 x 5/8
Modified Industry Description
SERVICE POST
AD Description

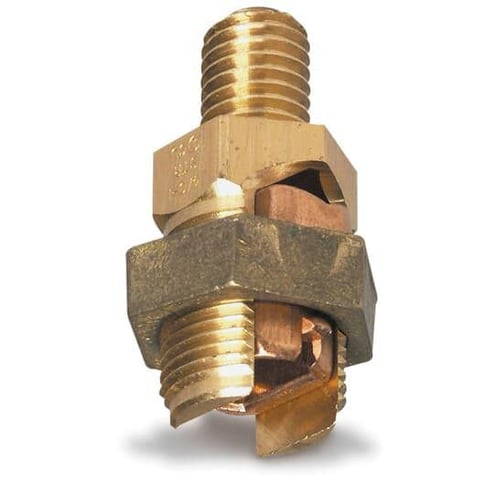

Blackburn® SP4SS Type DS Short Stud Service Post Connector, 1 Conductor, 8 to 1 AWG, 8 to 2 AWG Conductor, 3/8-16 x 5/8 in Stud, Bronze Alloy/Copper
Vendor Description
Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.
Specifications
| Application |
For copper to copper connections, for grounding of steel structures or transformers using one or two cables, for tapping one or two cables from bus bar.
|
|---|---|
| Brand Name |
Thomas & Betts
|
| Conductor Material |
Bronze
|
| Conductor Size |
8 to 1 AWG, 8 to 2 AWG
|
| Country of Origin |
MX
|
| Insulation |
None
|
| Material |
Bronze Alloy/Copper
|
| Package_Quantity |
100
|
| Special Features |
|
| Standard |
UL E9809
|
| Sub_Brand |
Blackburn
|
| Type |
Type DS Short Stud
|
