Thomas & Betts Thomas & Betts 686


Description

Industry Description

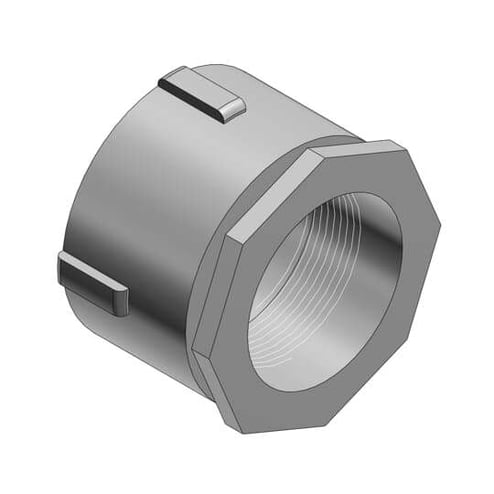

5 Inch Erickson Coupling, Malleable Iron with Steel and Malleable Iron Ring for Use with Rigid/IMC Conduit

Modified Industry Description

5 IN 3 PIECE COUPLING MALLEABLE

AD Description

T&B® Erickson® 686 Threaded Conduit Coupling, 5 in, For Use With IMC/Rigid Conduits, Malleable Iron

Vendor Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Specifications

Application
To Couple and Effectively Bond Threaded Ends of Rigid Metal Conduit/Intermediate Conduit Where Neither Length of Conduit Can Be Roated
Brand Name
Thomas & Betts
Country of Origin
US
Material
Malleable Iron
Outside_Diameter
6-25/32 Inch
Special Features

  • 3/8 in thru 6 in conduit range
  • Capable of carrying ground fault currents up to 10000 A RMS (1/2 in through 1-1/2 in size) and up to 20000 A RMS (2 in and above) (duration of fault current 3 cycles)
  • Free fitting threads insure easy assembly
  • Permits conduit coupling without rotating either conduit
  • Provides rigid in-line coupling with high quality grounding will not loosen under vibration
  • Steel and malleable iron ring
  • Suitable for concretetight application
Standard
UL E23018, CSA
Sub_Brand
Thomas & Betts
Trade_Size
5
Type
Threaded
Width_2
4.6000
