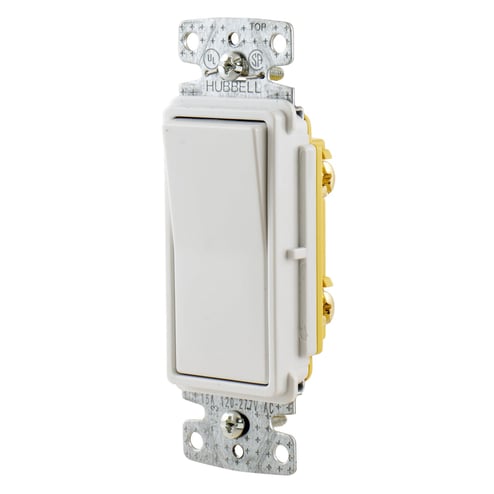

Hubbell Hubbell RSD115W
Hubbell RSD115W
Kirby Risk #: 2131192
UPC: 88377810113, 883778101137, 00883778101137
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, TradeSelect, Switches and LightingControls, Decorator Switch, Residential Grade, Rocker Switch, GeneralPurpose AC, Single Pole, 15A 120/277V AC, Push Back and Side Wired,White
Modified Industry Description
15A 120/277V - WHITE SINGLE POLE RESIDENTIAL ROCKER SWITCH
AD Description
Bryant Electric tradeSELECT™ RSD115W Standard Decorator Switch, 120/277 VAC, 15 A, 4155 W Power Rating, 2-Position Contact
Specifications
| Action |
Positive Snap
|
|---|---|
| Actuator |
Rocker
|
| Amperage Rating |
15
|
| Application |
Residential Wiring Devices
|
| Brand Name |
Hubbell
|
| Color |
White
|
| Connection |
Push/Back/Side Wired
|
| Contact_Configuration |
2 Position
|
| Contact_Rating |
Per UL 20
|
| Country of Origin |
CN
|
| Enclosure |
None
|
| Environmental_Conditions |
-20 to -60
|
| Indicator |
None
|
| Material |
Composite
|
| Mounting |
Threaded
|
| Number_Of_Poles |
1
|
| Operating_Cycles |
30000
|
| Operating_Temperature |
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1, UL20
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Decorator Positive Snap Self-Grounding
|
| Voltage Rating |
120/277
|
| Wattage |
4.155
|
