Midwest Midwest U075CP6010


Description

Industry Description

Midwest ElectricÂ’s metallic RV units are manufactured using 16-gauge, galvanized zinc-coated steel and NEMA 3R construction, which resists corrosion and fading and provides lasting service in outdoor applications. Units are available in surface mount and earth burial or padmount posts, offering a wide range of receptacle configurations to fit your needs.

Modified Industry Description

100A 120/240V 1Ph Unmetered Earth Burial Pedestal Bottom Feed NEMA 3R

AD Description

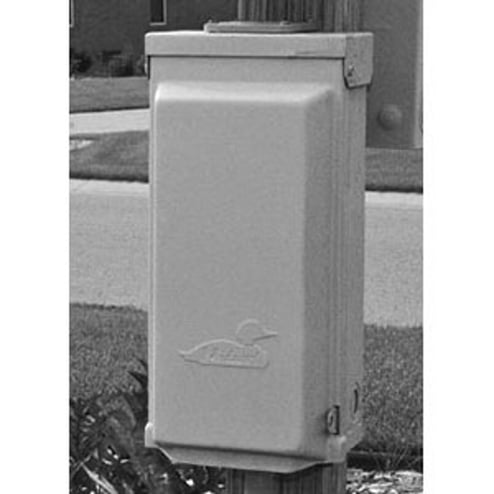

Midwest® GE U075CP6010 1-Head Unmetered Power Outlet Pedestal, 120/240 VAC, 100 A, 1 Phase, 1 AWG to 300 kcmil Wire, NEMA 3R Enclosure

Vendor Description

Midwest Electric's metallic RV units are manufactured using 16 ga, galvanized zinc coated steel and NEMA 3R construction, which resists corrosion and fading and provides lasting service in outdoor applications. Units are available in surface mount and earth burial or pad mount posts, offering a wide range of receptacle configurations to fit your needs.

Specifications

Amperage Rating
100
Brand Name
Midwest
Country of Origin
UKN
Cutout_Size
9PT
Material
Steel
Mounting
Surface
Phase
1
Special Features

  • 1 AWG to 300 kcmil (copper/aluminum) post line connectors suitable for loop feed/12 to 2 AWG equipment ground (copper/aluminum)
  • 16 ga galvanized zinc coated steel construction
  • All components are factory wired and assembled, reducing installation time
  • All in one construction for factory assured terminations
  • All terminals accept copper or aluminum wire for added installation flexibility
  • All units with 12 to 2 copper/aluminum equipment ground lug
  • Broad range of concentric knockouts to accommodate wiring needs
  • Door holds in open position for user convenience
  • Factory wired from loop feed lugs, located in the post to receptacles, reducing installation time
  • GFCI duplex receptacle/earth burial post options
  • Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
  • Hub provision
  • LC33N7 load center
  • LC55N1 load center
  • Loop feed lugs have twin 2 to 250 MCM terminals minimum per phase, copper/aluminum (some models available up to 350 MCM)
  • Rolled edge door for cord protection
  • Rolled edge post bottoms to protect service cable post door removable for installation ease
  • Surface heads
  • Welded flange, NEMA 3R construction for lasting service in outdoor installations
  • Wide range of receptacle configurations
Standard
UL/CUL listed
Sub_Brand
Midwest
Type
1-Head
Voltage Rating
120/240
Width_2
9.7500
Width_3
65.0000
