Burndy Burndy KVSW28


Description

Industry Description

Mechanical Connector For CUWeld and Copper Supplied with a CU alloy Spacer that seperates run and tap conductors, Recommended Torque: 250 LBS.

AD Description

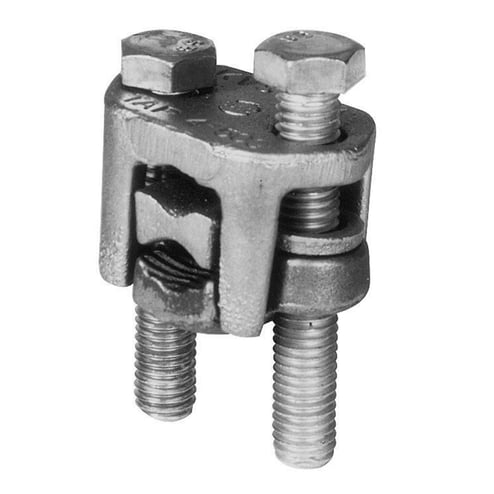

BURNDY® OKLIP™ KVSW28 2-Piece Mechanical Grounding Connector, 1/0 to 4/0 AWG, 6 to 4/0 AWG Conductor, Copper Alloy

Vendor Description

All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL 467 listed for direct burial applications in earth or concrete.

Specifications

Application
For Copper And Copperweld Conductors
Brand Name
Burndy
Conductor_Range_Main_Primary
1/0 - 4/0 AWG
Conductor_Range_Tap_Secondary
6 AWG Solid - 4/0 AWG
Conductor Type
Copper/Solid
Conductor Size
1/0 to 4/0 AWG, 6 to 4/0 AWG
Country of Origin
MX
Finish
Plain Copper Plated
Material
Copper Alloy
Package_Quantity
1.000
Special Features

  • 1/0 to 4/0 AWG (main/primary), 6 AWG solid to 4/0 AWG (tap/secondary) conductor size
  • 250 in-lb installation torque
  • Conductor spacer
  • Confines conductor strands and assures vibration-proof connection
  • Copper supplied with a copper alloy spacer that separates run and tap conductors
  • Longer peened bolt
  • Permits swivel action for easier installation
  • Provides high contact pressure
  • Run: copper weld, commercial stranded copper conductor type
  • Silicon bronze Durium hardware
  • Type KVS except for a high copper alloy spacer that separates run and tap conductors
Standard
RoHS Compatible
Sub_Brand
OKLIP
Type
2-Piece
