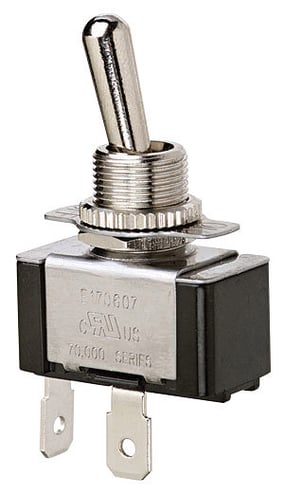

Ideal Ideal 774011
Ideal 774011
Kirby Risk #: 2121377
UPC: 78178974011, 781789740119, 00781789740119
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Ideal
Description
Industry Description
IDEAL, Toggle Switch, Standard, On-Off, Voltage Rating: 125, 227 VAC, Amperage Rating: 20, 10 AMP, Number Of Poles: 1, Action: SPST, Connection: Screw, 2 Terminals, Actuator: Toggle, Contact Rating: Factory Tested 100000 Cycles To 21 AMP 14.8 VDC DC Rating, Size: 1.130 IN Length X 0.570 IN Width X 0.610 IN Height, Mounting: 1/2 IN Hole Diameter, Operating Cycles: 100000 Cycles Mechanical Life, Operating Temperature: 32 To 185 DEG F, Dielectric Strength: 1500 V, Finish: Solid Brass/Nickel-Plated Bushings, Hp Rating: 3/4 HP At 125 To 250 VAC, Includes: On-Off Faceplate
Modified Industry Description
SWITCH,TOGGLE,SPST,O-F,SCREW
AD Description
BUCHANAN 774011 Standard Toggle Switch, 125/227 VAC, 20/10 A, 3/4 hp Power Rating, SPST ON/OFF Contact
Specifications
| Action |
SPST
|
|---|---|
| Actuator |
Toggle
|
| Amperage Rating |
20/10
|
| Application |
For Power Tool And Motor Control Switch Applications
|
| Brand Name |
Ideal
|
| Connection |
Screw, 2 Terminals
|
| Contact_Configuration |
SPST ON/OFF
|
| Contact_Rating |
Factory Tested 100000 Cycles to 21 A 14.8 VDC
|
| Country of Origin |
CHN
|
| Environmental_Conditions |
32 to 185 deg F Operating Temperature
|
| Material |
Solid Brass
|
| Mounting |
1/2 IN Hole Diameter
|
| Number_Of_Poles |
1
|
| Operating_Cycles |
100000
|
| Operating_Temperature |
32 To 185
|
| Size |
1.130 IN Length X 0.570 IN Width X 0.610 IN Height
|
| Special Features |
|
| Standard |
CSA, RU Listed, RoHS
|
| Sub_Brand |
Ideal
|
| Type |
Standard
|
| Voltage Rating |
125/227
|
