Midwest Midwest U010C010


Description

Industry Description

Midwest ElectricÂ’s metallic RV units are manufactured using 16-gauge, galvanized zinc-coated steel and NEMA 3R construction, which resists corrosion and fading and provides lasting service in outdoor applications. Units are available in surface mount and earth burial or padmount posts, offering a wide range of receptacle configurations to fit your needs.

Modified Industry Description

POWER OUTLET

AD Description

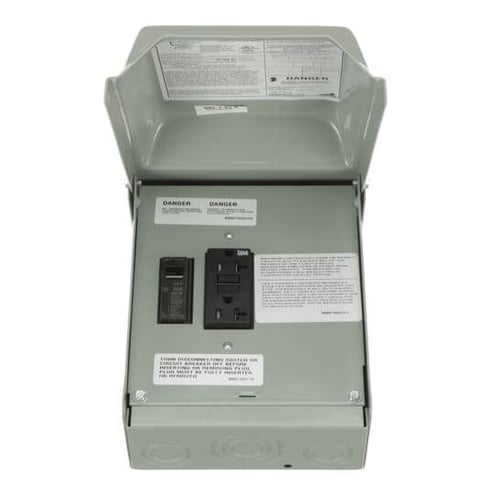

Midwest® GE U010C010 Unmetered Power Outlet Pedestal, 120 VAC, 20 A, 1 Phase, 14 to 8 AWG, 14 to 6 AWG, 12 to 8 AWG, 12 to 6 AWG, 14 to 10 AWG Wire, NEMA 3R Enclosure

Vendor Description

Midwest Electric's metallic RV units are manufactured using 16 ga, galvanized zinc coated steel and NEMA 3R construction, which resists corrosion and fading and provides lasting service in outdoor applications. Units are available in surface mount and earth burial or pad mount posts, offering a wide range of receptacle configurations to fit your needs.

Specifications

Amperage Rating
20
Brand Name
Midwest
Cable_Entry
Knockout Code (G): 1/2, 3/4, 1 IN; Knockout Code (N): 1/2, 3/4, 1, 1-1/4, 1-1/2 IN
Country of Origin
UKN
Cutout_Size
6 X 9
Material
Steel
Mounting
Surface
Phase
1
Special Features

  • 200 A loop feed lugs have twin 2 to 250 MCM terminals minimum per phase, copper/aluminum (some models available up to 350 MCM)
  • All components are factory wired and assembled, reducing installation time
  • All in one construction for factory assured terminations
  • All terminals accept copper or aluminum wire for added installation flexibility
  • All units with 12 to 2 copper/aluminum equipment ground lug
  • Broad range of concentric knockouts to accommodate wiring needs
  • Door holds in open position for user convenience
  • Factory wired from loop feed lugs, located in the post to receptacles, reducing installation time
  • GFCI duplex receptacle options
  • Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
  • No loop feed
  • Post door removable for installation ease
  • Rolled edge door for cord protection
  • Rolled edge post bottoms to protect service cable
  • Suitable for service equipment
  • Surface heads 20GFCI receptacles
  • Welded flange, NEMA 3R construction for lasting service in outdoor installations
  • Wide range of receptacle configurations
Standard
UL/CUL listed
Sub_Brand
Midwest
Type
Unmetered Power Outlet
Voltage Rating
120
Width_2
7.7500
Width_3
36.0000
