Thomas & Betts Thomas & Betts GUV3021


Description

Industry Description

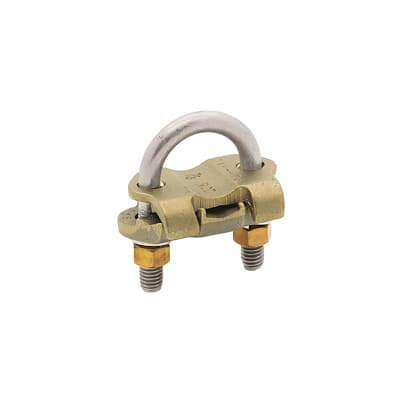

U-Bolt Copper Ground Clamp, Stainless Steel U-Bolt, Wire Range 4 - 2/0 AWG, Rod Size 3 to 3-1/2 Inches, IPS Pipe Size Max 3 Inches, Length 5-9/16 Inches, Width 4-13/16 Inches, Depth 1-9/16 Inches

Modified Industry Description

U BOLT GROUND CLAMP

AD Description

Blackburn® GUV3021 Type GUV Non-Insulated U-Bolt Grounding Clamp, 3 to 3-1/2 in Rod, 4 to 2/0 AWG Conductor, Copper

Vendor Description

Blackburn® compression, mechanical and exothermic connectors and accessories represent the most comprehensive set of products in the industry for the creation of a safe, code compliant and reliable grounding system.

Specifications

Brand Name
Thomas & Betts
Conductor Material
Copper
Conductor Size
4 to 2/0
Country of Origin
IN
Insulation
None
Material
Copper
Package_Quantity
10
Special Features

  • All components cast or forged from copper alloy
  • Excellent for connecting multiple electrodes with a single cable, such as in substation grounding
  • GUV body components are cast or forged from copper alloy and U-bolts are stainless steel
  • Listed for direct burial in earth or concrete
  • Specially designed spacer provides proper alignment between cable and electrode and affords more positive contact area
Standard
UL E3060, CSA 12798
Sub_Brand
Blackburn
Type
Type GUV Non-Insulated
