Hubbell Hubbell SFFX
Hubbell SFFX
Kirby Risk #: 2098103
UPC: 66262080976, 662620809762, 00662620809762
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

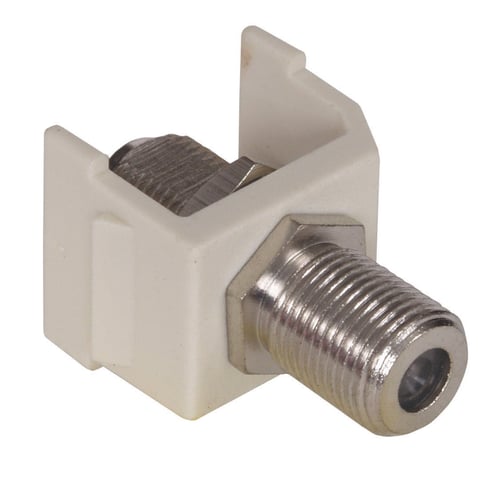

Hubbell Premise Wiring Products, Snap-Fit, F-Coax Connector, OfficeWhite
Modified Industry Description
WHITE SNAP-FIT W/ F CONNECTOR
AD Description
PREMISE WIRING iSTATION™ SFFX AV Connector, Female to Female Connector, RG6/RG59 Coaxial Cable
Vendor Description
Hubbell's AV gold and nickel plated F-connectors provide a perfect solution for distributing coaxial (RG-6 and RG-59) video signals to the work station or cross connect. Requiring no soldering, these F-connectors install with a snap and provide a quick easy "screw-on" or "push-on" termination. These F-connectors are available in 7 standard hubbell colors and mount into all iSTATION™ face plates, modules, frames, surface housings, hubbell delivery system products including poke-throughs and surface raceway and iSTATION™ UDX multimedia panels. Create a customized multimedia workstation by adding a gold F-connector along with Hubbell's extensive line of AV connectors, loaded modules and XCELERATOR™ jacks.
Specifications
| Application |
Snap-Fit F-Connector
|
|---|---|
| Brand Name |
Hubbell
|
| Color |
White
|
| Connection |
Female to Female
|
| Contact_Resistance |
100 Ohm
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Mounting |
Snap-On- Snap-Fit
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
TIA/EIA-568
|
| Sub_Brand |
Copper Audio and Video
|
| Temperature_Rating |
Per TIA
|
| Type |
iSTATION RCA and F-Keystone Connectors
|
| Width_2 |
6.5500
|
| Width_3 |
16.1000
|
| Withstand_Voltage |
1000V RMS, 1414V DC
|
