Broan-NuTone Broan-NuTone 508
Broan-NuTone 508
Kirby Risk #: 2098054
UPC: 02671502288, 00026715022885, 026715022885
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Broan-NuTone
Description
Industry Description

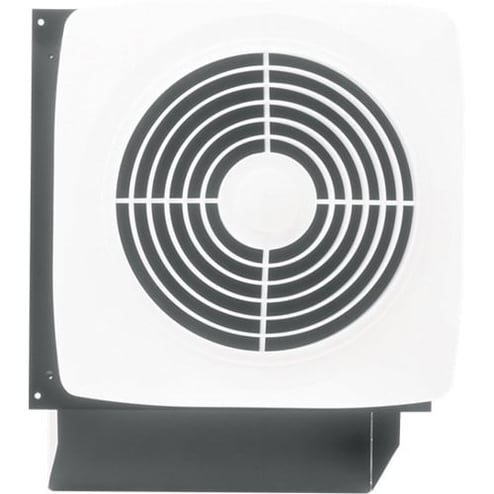

10" Fan, 270 CFM, 6.0 Sones, 13-1/2" square plastic grille.
Modified Industry Description
10IN 270 CFM Through Wall Ventilation Fan, White Square Plastic Grille
AD Description
Broan® 508 Direct Discharge Through Wall Utility Ventilation Fan, 270 cfm, 10-3/8 in Dia Duct, 120 VAC, 1.7 A, Domestic
Specifications
| Air_Flow |
270
|
|---|---|
| Amperage Rating |
1.7
|
| Application |
For Removing Humidity From Laundry Rooms, Tobacco Smoke From Rec Rooms, Fumes From Workshops Or Cooking Fumes From Kitchens
|
| Brand Name |
Broan-NuTone
|
| Color |
White
|
| Country of Origin |
USA
|
| Fan_Type |
Ventilation
|
| Flow_Rate |
270
|
| Frequency_Rating |
60
|
| Grille_Color |
White
|
| Grille_Material |
Polymer
|
| Grille_Shape |
Square
|
| Housing_Dimensions |
14-1/4 IN Height X 14-1/4 IN Width X 3-1/4 IN Depth
|
| Housing_Material |
Steel
|
| Humidty_Sensing |
False
|
| RPM |
1625
|
| Special Features |
|
| Standard |
UL Listed, HVI 2100 Certified
|
| Sub_Brand |
Broan
|
| Type |
Direct Discharge Through Wall
|
| Voltage Rating |
120
|
