Thomas & Betts Thomas & Betts GUV13821


Description

Industry Description

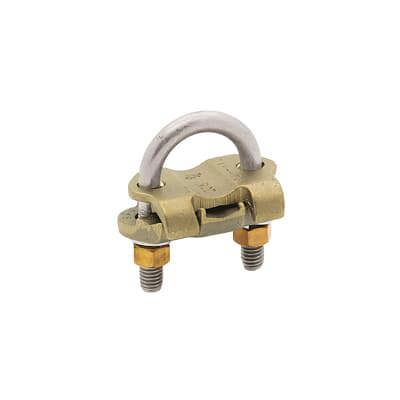

U-Bolt Copper Ground Clamp, Stainless Steel U-Bolt, Wire Range 4 - 2/0 AWG, Rod Size 1-3/8 to 1-1/2 Inches, IPS Pipe Size Max 1-1/4 Inches, Length 3-7/16 Inches, Width 2-15/16 Inches, Depth 1-9/16 Inches

AD Description

Blackburn® GUV13821 Type GUV U-Bolt Grounding Clamp, 1-3/8 to 1-1/2 in Rod, 4 to 2/0 AWG Conductor, Copper

Vendor Description

Blackburn® compression, mechanical and exothermic connectors and accessories represent the most comprehensive set of products in the industry for the creation of a safe, code compliant and reliable grounding system.

Specifications

Conductor Type
Copper/Copper Clad Steel
Conductor Size
4 to 2/0
Country of Origin
IN
Dimensions
3-7/16 in L x 2-15/16 in W x 1-9/16 in D
Length1
0.0100
Material
Copper
Special Features

  • All components cast or forged from copper alloy
  • Excellent for connecting multiple electrodes with a single cable, such as in substation grounding
  • GUV body components are cast or forged from copper alloy and U-bolts are stainless steel
  • Listed for direct burial in earth or concrete
  • Specially designed spacer provides proper alignment between cable and electrode and affords more positive contact area
Standard
UL E3060, CSA 12798
Type
Type GUV
