Thomas & Betts Thomas & Betts GUV1384


Description

Industry Description

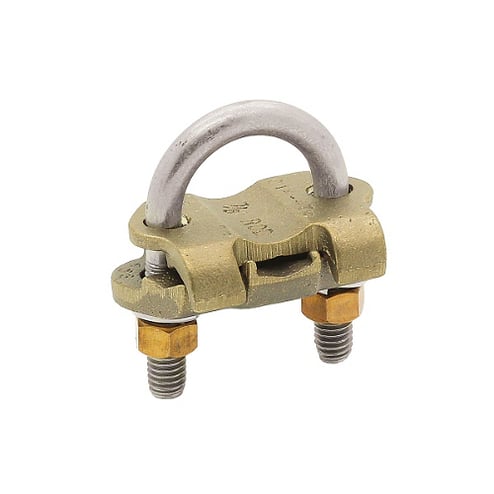

U-Bolt Copper Ground Clamp, Stainless Steel U-Bolt, Wire Range 8 - 4 AWG, Rod Size 1-3/8 - 1-1/2 Inches, IPS Pipe Size Max 1-1/4 Inches, Length 3-7/16 Inches, Width 2-15/16 Inches, Depth 1-9/16 Inches

Modified Industry Description

U BOLT GRD CLMP

AD Description

Blackburn® GUV1384 Type GUV Non-Insulated U-Bolt Grounding Clamp, 1-3/8 to 1-1/2 in Rod, 8 to 4 AWG Conductor, Copper

Vendor Description

Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.

Specifications

Brand Name
Thomas & Betts
Conductor Material
Copper
Conductor Size
8 to 4
Country of Origin
IN
Insulation
None
Material
Copper
Package_Quantity
10
Special Features

  • All components cast or forged from copper alloy
  • Excellent for connecting multiple electrodes with a single cable, such as in substation grounding
  • GUV body components are cast or forged from copper alloy and U-bolts are stainless steel
  • Listed for direct burial in earth or concrete
  • Specially designed spacer provides proper alignment between cable and electrode and affords more positive contact area
Standard
UL E3060, CSA 12798
Sub_Brand
Blackburn
Type
Type GUV Non-Insulated
