Burndy Burndy YA36
Burndy YA36
Kirby Risk #: 2092384
UPC: 78181052115, 781810521151, 00781810521151
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description

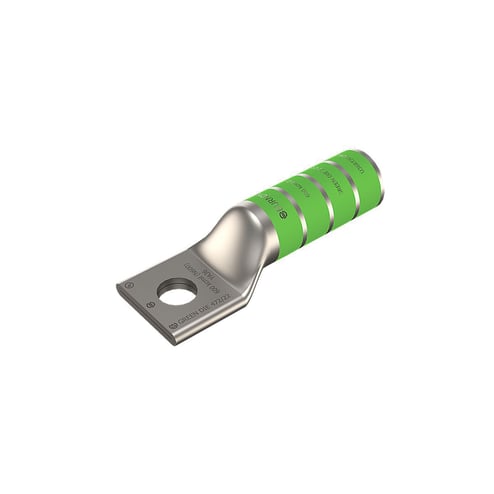

Copper Compression Lug, 1 Hole w/o Inspection Window, 600 kcmil, 5/8" Stud, Long Barrel, Electro Tin Plated.
Modified Industry Description
CU COMPR LUG 1 HOLE 600 AWG 5/8 STUD LONG
AD Description
BURNDY® HYLUG YA36 1-Hole Non-Insulated Compression Lug, 600 kcmil Stranded Copper Conductor, Die Code: 22/472, 5/8 in Stud, Copper
Specifications
| Application |
For Code Conductor
|
|---|---|
| Brand Name |
Burndy
|
| Cable_Size |
600 KCMIL, 300 SQ-MM For Class 2 Conductor
|
| Color |
Green
|
| Conductor Material |
Copper
|
| Conductor Size |
600
|
| Country of Origin |
US
|
| Insulation |
Uninsulated
|
| Material |
Copper
|
| Number_Of_Holes |
1
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
|
| Stud_Size |
5/8
|
| Sub_Brand |
Burndy
|
| Temperature_Rating |
90
|
| Type |
1-Hole Non-Insulated
|
| Voltage Rating |
600 VAC to 35 kV
|
