O-Z/Gedney O-Z/Gedney R1501B0
O-Z/Gedney R1501B0
Kirby Risk #: 2086767
UPC: 78312602207, 783126022070, 00783126022070
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: O-Z/Gedney
Description
Industry Description

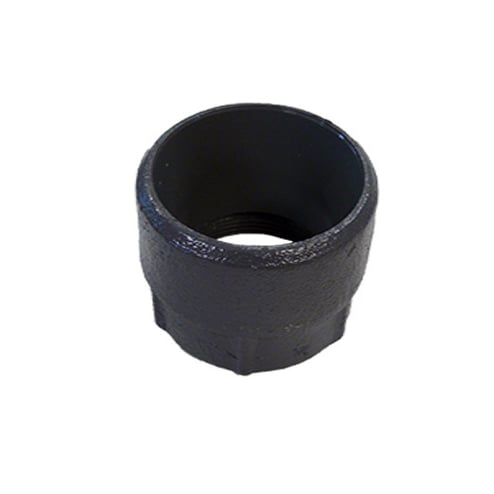

Cable Support Body, Type Tapered, Plug Type Multiple Segment, Conduit Type Rigid/IMC/EMT, Conduit Position Vertical, Conductor Size 18 to 8 AWG, 6 to 1/0 AWG, 2/0 to 4/0 AWG, 4/0 AWG to 750 KCMIL (Aluminum/Copper Clad Aluminum/Copper), Conduit Size 1-1/2 Inch, Cable Type Non-Armored, Material Hot Dip Galvanized Malleable/Ductile Iron, Application Indoor, Approval UL 514B, CSA C22.2, Applicable Standard NEC 300-19
Modified Industry Description
TYPE R 1-1/2 IN CBL SPRT BDY
Specifications
| Application |
ONE or more wires - Indoors - at all voltages
|
|---|---|
| Country of Origin |
US
|
| Finish |
Hot Dip Galvanized
|
| Length1 |
9999.0000
|
| Material |
Malleable or Ductile Malleable
|
| Size |
1-1/2
|
| Special Features |
Threaded for Rigid Conduit, IMC and EMT with pOZi-grip R-style Wedging Plug
|
| Type |
Multiple Segment Plug R - Body Only
|
