Burndy Burndy YGF344N

Name: Burndy YGF344N
Brand: Burndy
SKU: 2070407
Price: 326.83 USD
Availability: InStock

Burndy YGF344N

Kirby Risk #: 2070407

UPC: 78181022052, 781810220528, 00781810220528

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Burndy

Description

Industry Description

Copper Compression Grounding Plate, 4 Hole, 500 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing.

AD Description

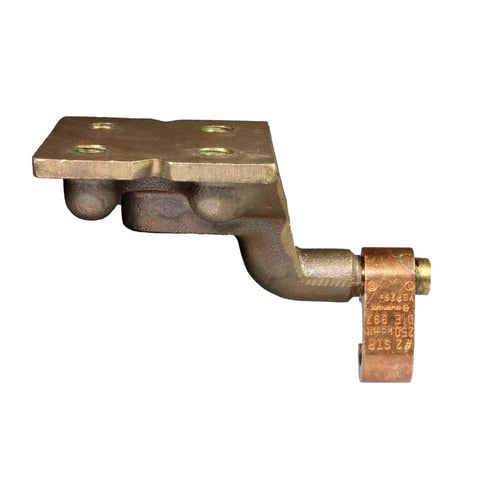

BURNDY® YGF344N Type YGF Compression Grounding Plate, 250 to 500 kcmil Cable, 3-3/4 in H x 3-3/4 in W Plate, 1/2 in Plate Hole, Cast Copper Alloy

Application	Used to position the grounding plate on a threaded rod prior to placement of the concrete.
Conductor Type	CU C Str-Size
Country of Origin	US
Length1	5.9000
Material	Copper
Special Features	1011 index number 250 to 500 kcmil stranded copper cable 4-tapped holes Acceptable for direct burial in earth and concrete In addition to the tapped NEMA size holes and spacing on the face, the plate comes with a tapped hole on the underside for ease of positioning prior to pouring the concrete Pre-filled oxide inhibitor Pre-filled with Penetrox® compound and strip sealed The ground plates are made of high strength, high conductivity cast copper alloy body with a pure wrought copper compression element The irreversible compression ground plate is designed to withstand the rigors of concrete construction
Standard	NEMA Size Holes
Sub_Brand	GROUNDING PLATE
Type	YGF
