Hubbell Hubbell IN330BM
Hubbell IN330BM
Kirby Risk #: 2068532
UPC: 78358542019, 783585420196, 00783585420196
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Male, Replacement Interior, For 30A 3-Wire,Furnished with Screws, Black Thermoset Polyester
Modified Industry Description
REPLACEMENT INTERIOR MALE 30A
AD Description

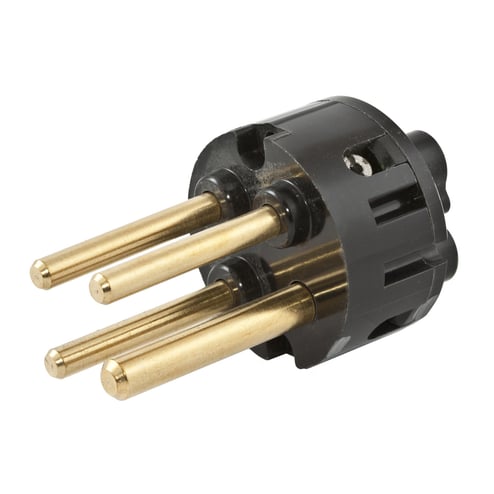

Wiring Device-Kellems IN330BM Heavy Duty Male Standard Watertight Plug/Inlet Interior, 250 to 480 VAC, 30 A, 2 Poles, 3 Wires, Pressure Screw Connector
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
HBL330P6W, HBL330B6W, HBL330P7W, HBL330B7W, HBL332P4W, HBL332B4W, HBL332P6W, HBL332B6W
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Pressure Screw Terminals
|
| Conductor Size |
#12AWG to #10AWG
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Watertight When Installed
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Replacement Female Interior
|
| Voltage Rating |
250
|
